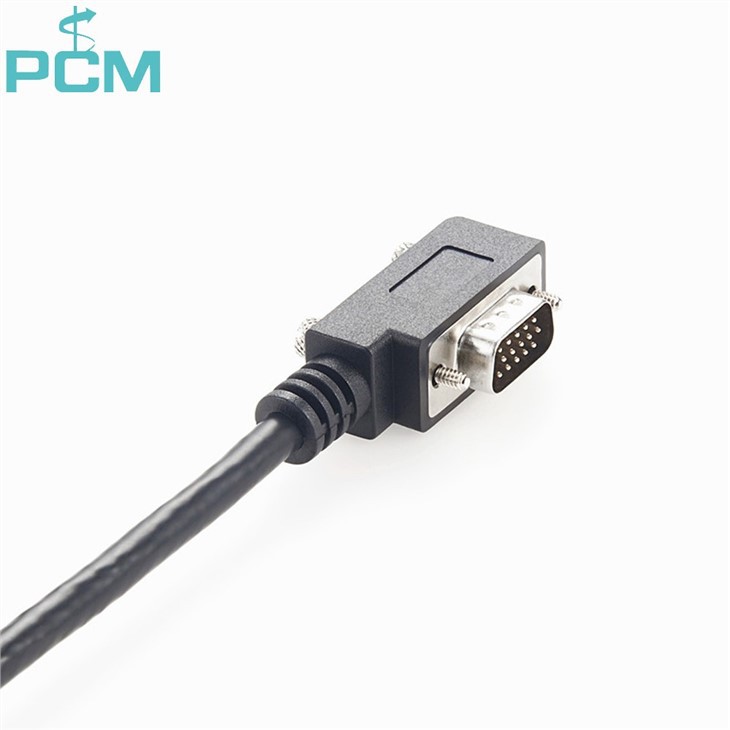

High Quality VGA Extension Cable LCD TV Male to Female
Right Angle connection at one end for tight spaces
Superior molded cables with foil-shielding for maximum EMI/RFI protection
Gold plated connectors and gold plated copper contacts ensure excellent conductivity
We have a large market share in Panel Mount Dual USB To 9 Pin Connector, USB cable USB adaptor, USB to RS232 RJ12 6P6C Cable field. Our goal is to establish the industry's technological leadership and increase the value contribution of technological innovation. The company has gradually formed the enterprise spirit of "sincere service, happy struggle, unity and innovation" and the service concept of "careful heating, sincere service". The company pays attention to the training and development of talents, and has a set of strict implementation procedures in all aspects of selection, employment, education and training.

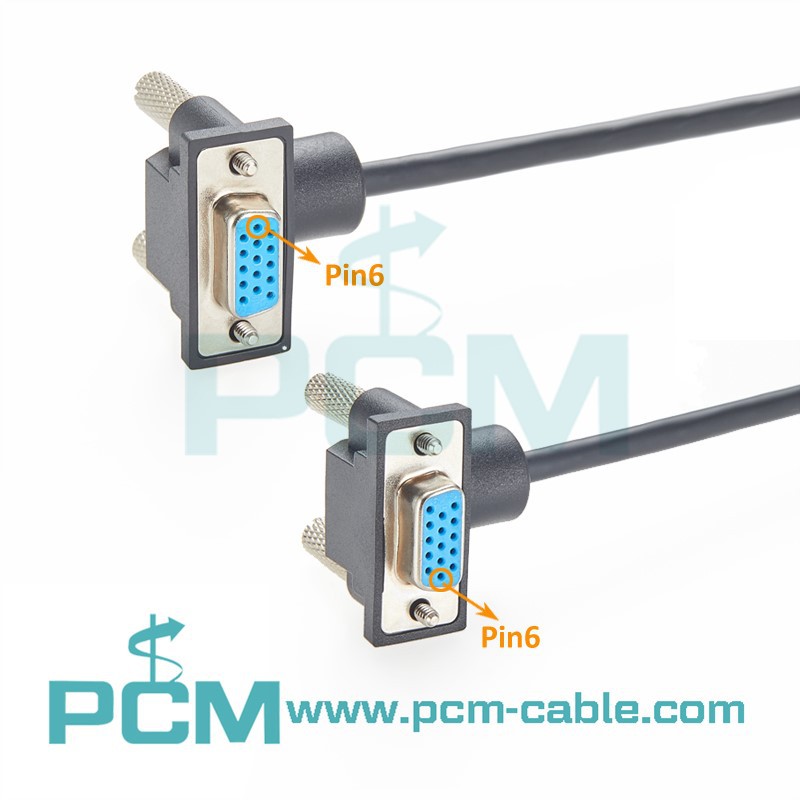

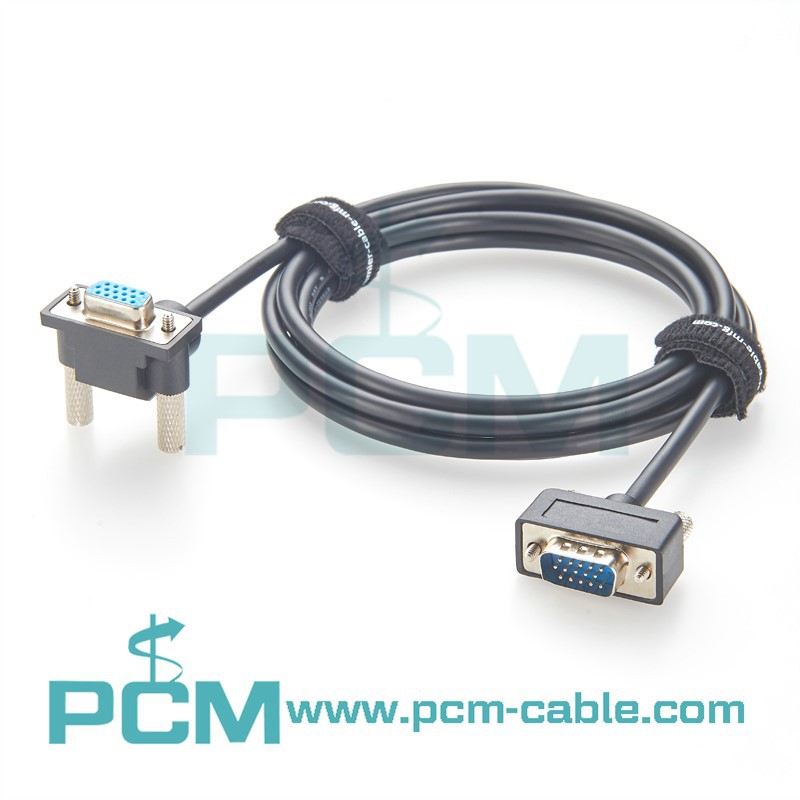

The PCM-S-0700 / PCM-S-0701 VGA Cable features an upward or downward 90° HD15 female connector paired with a straight HD15 male connector. Designed for compact spaces and tight panel installations, this low-profile cable provides a clean, reliable connection behind monitors, AV racks, or industrial equipment where straight plugs are impractical.
Manufactured by Premier Cable, it ensures stable Full HD signal transmission and robust construction for industrial and professional AV applications.
Specifications
| Product Name | Ultra-Slim Up/Down Angled HD15 VGA Female-to-Male Cable |
| Model | PCM-S-0700 (Up) / PCM-S-0701 (Down) |
| Connector A | HD15 VGA Female (Up / Down 90° Angled) |
| Connector B | HD15 VGA Male (Straight) |
| Profile | Ultra-low-profile design |
| Shielding | Foil + braid dual shielding |
| Contact Material | Gold-plated |
| Jacket | PVC |
| Strain Relief | Molded, reinforced |
| Length | 2m (Custom lengths available) |
| Resolution Support | Up to 1920×1080 Full HD |
| Compatibility | VGA / SVGA / XGA / UXGA / RGBHV devices |
| Manufacturing | Premier Cable OEM/ODM facto |
Premier Cable Angled VGA Cable Series Comparison Table
| Part Number | Angle Direction | Connector Type | Low-Profile | Description / Application |
|---|---|---|---|---|
|
PCM-S-0684 / PCM-S-0685 |
Left / Right | Male-to-Male | Yes | Left or right angled HD15 VGA plugs for tight spaces, wall-mounted displays, and AV cabinet installations. |
|
PCM-S-0698 / PCM-S-0699 |
Left / Right | Female-to-Male | Yes | Left or right angled HD15 VGA female connectors, ideal for extending existing VGA runs in compact wiring setups. |
|
PCM-S-0690 / PCM-S-0691 |
Up / Down | Male-to-Male | Yes | Up or down angled HD15 VGA plugs for top/bottom installation in tight wall or rack spaces. |
|
PCM-S-0700 / PCM-S-0701 |
Up / Down | Female-to-Male | Yes | Up or down angled HD15 VGA female connectors, perfect for extensions or compact installations. |
| PCM-S-0688 | Straight | Male-to-Male | Yes | Low-profile straight HD15 VGA male-to-male cable, space-saving, compatible with all standard VGA displays. |
| PCM-S-0689 | Straight | Male-to-Female | Yes | Low-profile straight HD15 VGA male-to-female cable, ideal for VGA extension or adapter use. |
About Premier Cable – Angled Cable Solutions
Premier Cable specializes in manufacturing high-quality angled cables for a wide range of connectors, including VGA, DB9, DB15, DB25, DB37, DB44, DVI, Mini DIN, and more. Our angled solutions feature 90° bends (up, down, left, right) and 45° bends, accommodating tight spaces and compact installations.
Whether you need male-to-male, female-to-male, or female-to-female connections, we can customize cable lengths, connector types, and bend directions to fit your exact requirements. Contact us with your specifications, and we will create a tailored angled cable solution to meet your industrial, professional AV, or specialized project needs.
We are committed to R & D of independent high-tech High Quality VGA Extension Cable LCD TV Male to Female, and continue to increase R & D efforts and technical capital investment. Based on the principle of honest management, we are aggressive and pioneering. After years of hard work, our products are well received by users. We vigorously implement the development strategy of going out, and successfully realize the development of industrial integration by relying on technology, management and system innovation.
