Allows cables to mate at a 90 degree angle to avoid nearby obstructions
Gold contact plating provides reliable connections with repeated mating cycles
HD15 is often used in VGA adapter applications
We strive to make conscientious products and do every detail of the M12 8 Pin Right Angle Connector Cable for Sensor, TNC Male to Female Pigtail Jumper Cable, USB to RS485 UART Serial Converter PCB, let users rest assured and continue to create value for customers, thereby achieve the goal of win-win cooperation. We welcome new and previous clients from all walks of lifetime to get in touch with us for future small business interactions and mutual success! We are looking forward to entering a new future in quality, technology and innovation. The company is well-known in the industry for technological innovation and product innovation, and is committed to the research and development of high-tech products.

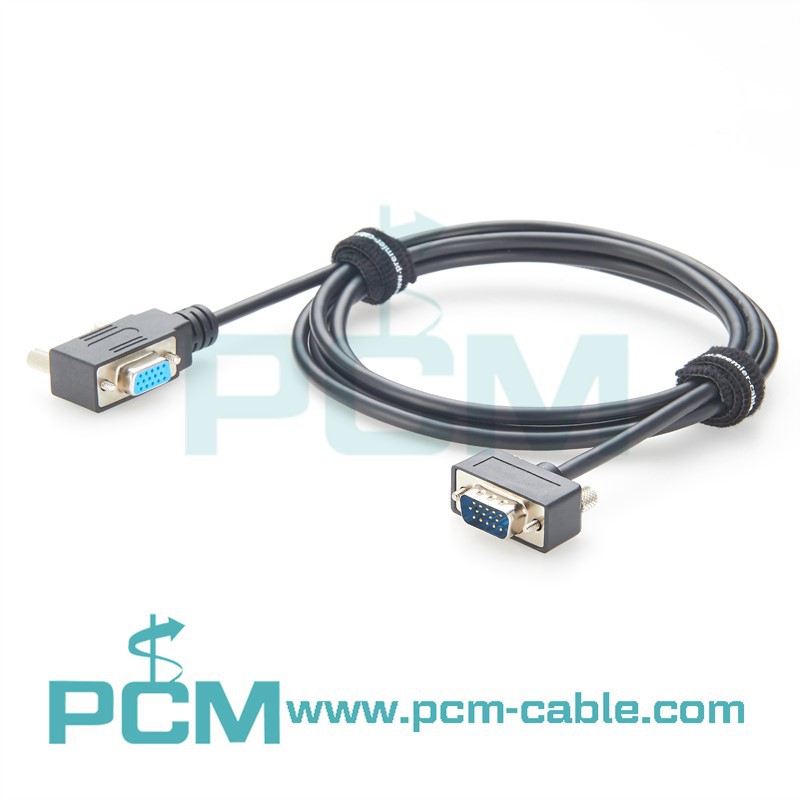

The PCM-S-0698 / PCM-S-0699 VGA Cable features a left-angled or right-angled HD15 female connector mated with a straight HD15 male connector, designed for tight-space installations. This low-profile cable enables clean, compact VGA connections behind monitors, AV racks, or industrial equipment where straight connectors are not feasible.
Manufactured by Premier Cable, this solution delivers reliable signal transmission and robust construction for both industrial and professional AV setups.
Specifications
| Product Name | Low Profile 90° Angled VGA Cable | Perfect for Monitors & Projectors |
| DWG No. | PCM-S-0698 (left) / PCM-S-0699 (right) |
| Connector A | HD15 VGA Male (Straight) |
| Connector B | HD15 VGA Female (90° Left-Angled or Right-Angled) |
| Design | Ultra-low-profile slim housing |
| Shielding | Foil + braid double shielding |
| Contact Material | Gold-plated |
| Resolution Support | Up to 1920×1080 Full HD |
| Jacket Material | PVC |
| Strain Relief | Molded, reinforced |
| Orientation Options | Left-angled or right-angled |
| Length | 2m (Custom lengths available) |
| Compatibility | VGA / SVGA / XGA / UXGA / RGBHV devices |
| Manufacturing | Premier Cable OEM/ODM factory |
Premier Cable Angled VGA Cable Series Comparison Table
| Part Number | Angle Direction | Connector Type | Low-Profile | Description / Application | |
|---|---|---|---|---|---|
|
PCM-S-0684 / PCM-S-0685 |
Left / Right | Male-to-Male | Yes | Left or right angled HD15 VGA plugs for tight spaces, wall-mounted displays, and AV cabinet installations. | |
|
PCM-S-0698 / PCM-S-0699 |
Left / Right | Female-to-Male | Yes | Left or right angled HD15 VGA female connectors, ideal for extending existing VGA runs in compact wiring setups. | |
|
PCM-S-0690 / PCM-S-0691 |
Up / Down | Male-to-Male | Yes | Up or down angled HD15 VGA plugs for top/bottom installation in tight wall or rack spaces. | |
|
PCM-S-0700 / PCM-S-0701 |
Up / Down | Female-to-Male | Yes | Up or down angled HD15 VGA female connectors, perfect for extensions or compact installations. | |
| PCM-S-0688 | Straight | Male-to-Male | Yes | Low-profile straight HD15 VGA male-to-male cable, space-saving, compatible with all standard VGA displays. | |
| PCM-S-0689 | Straight | Male-to-Female | Yes | Low-profile straight HD15 VGA male-to-female cable, ideal for VGA extension or adapter use. |
About Premier Cable – Angled VGA Cables
Premier Cable is a professional OEM/ODM cable manufacturer specializing in high-quality angled VGA cables. Our series includes left, right, up, and down angled connectors, available in male, female, and low-profile plugs.
All cables feature dual shielding, molded strain relief, and gold-plated contacts, ensuring stable Full HD signal and durable performance. Ideal for industrial PCs, KVMs, wall-mounted monitors, AV racks, and tight-space installations. Premier Cable provides custom lengths, private labeling, and factory-direct quality, making our angled VGA solutions reliable for both industrial and professional AV applications.
