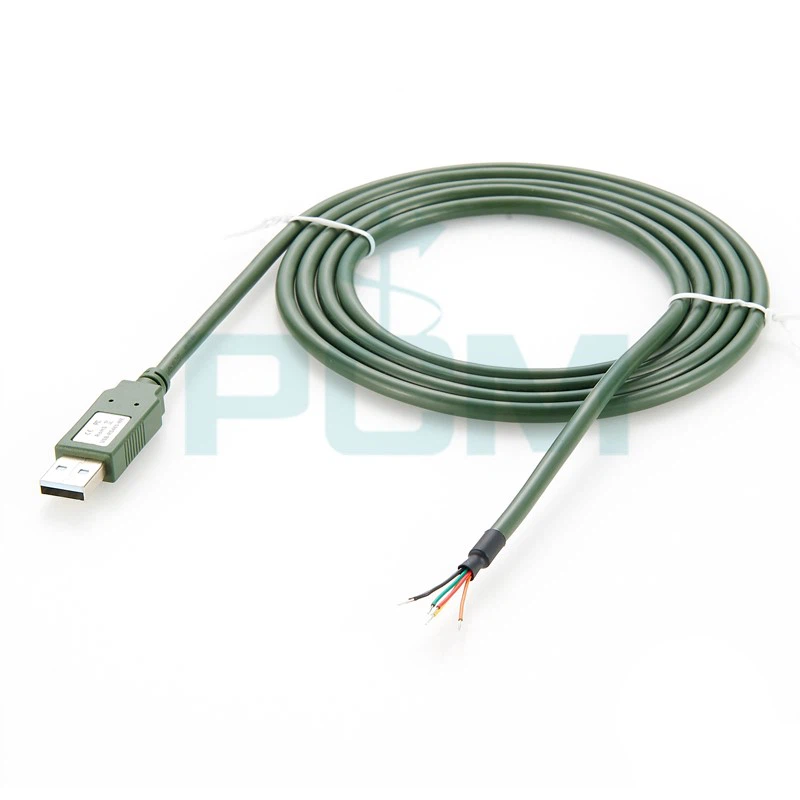

USB-RS485-WE Cable
The USB-RS485-WE cable is a high-performance USB to RS485-grade serial UART converter cable designed for industrial communications, data acquisition, and device control. The cable integrates FTDI's FT232R chip, which can efficiently handle all USB signals and protocols to ensure a stable and reliable communication experience. It supports USB 2.0 full speed and can be seamlessly compatible with a variety of devices. USB-RS485 cable is suitable for various application scenarios that require RS485 communication, such as industrial automation, sensor networks, and data acquisition systems.
Specifications
| Product name | USB to UART cable with RS485 level UART signals |
| DWG No. | PCM-FDZ-485-WE |
| Compatible with | USB-RS485-WE-1800-BT, USB-RS485-WE-5000-BT |
| FTDI chip | FT232R |
| USB connector | USB2.0 type A |
| End connector | Wire ended |
| Power supply | USB power supply, output 5V power supply |
| Data Rates | 3MBaud |
| USB Speed | Full Speed (12Mbps) |
| Interfaces | UART |
| Cable Length | 1.8m, 5m, or customized |
| Wire | UL2464 24 AWG 6 core |
| Cable diameter | 5mm |
| Cable jacket | PVC, green |
Main Features
- USB-RS485 Converter Cable: Provides USB to RS485 serial interface to ensure flexible connection.
- Customized Terminal Connector: This USB to RS485 converter cable comes with customized terminal connectors to facilitate access to various devices.
- Data Transfer Rate: Supports multiple data transfer rates from 300 baud to 3 Mbaud to adapt to different communication needs.
- Compatibility: Meets USB 2.0 full speed standard to ensure compatibility with various USB devices.
- RoHS Standard: Meets RoHS standards to ensure environmental protection and safety.
- Low Power Design: Adopts EIA/TIA-485 communication interface with low power requirements, suitable for long-term operation.
- Unterminated Design: Comes with bare wires and tinned wires to facilitate users to connect according to their needs.
Applications
Industrial Automation System
The FTDI chip USB-RS485 cable is suitable for connecting industrial controllers and sensors for efficient data acquisition and monitoring.
Building Automation
With the USB to RS485 converter cable, you can connect building management systems to various devices, such as HVAC systems and lighting controllers.
Data Acquisition System
In data acquisition and monitoring applications, the USB to RS485 serial converter cable can be used to transfer sensor data to a computer or data logger.
Instrumentation
The USB-RS485 converter cable can be connected to various instruments, such as electronic scales and measuring equipment, to achieve serial communication and data exchange.
Intelligent Transportation System
In intelligent transportation management, the USB to RS485 serial interface cable can be used to connect surveillance cameras and traffic signal controllers to obtain traffic data in real time.
Research Laboratory
The USB to RS485 wire end design is easy to connect different devices in the laboratory to meet the data transmission needs of researchers.
About Premier Cable
Premier Cable is a professional cable and connector manufacturer, dedicated to providing USB-to-serial cables and various customized connection solutions. We use original FTDI chips to ensure product stability and reliability. Whether it is RS232, RS485, RS422 or TTL signals, we can provide corresponding adapters and converters. At the same time, our product range is complete, covering innovative designs such as 2-in-1 and 4-in-1 to meet the needs of different customers. With high-quality products and flexible customization services, Premier Cable has won a good reputation in the industry.
