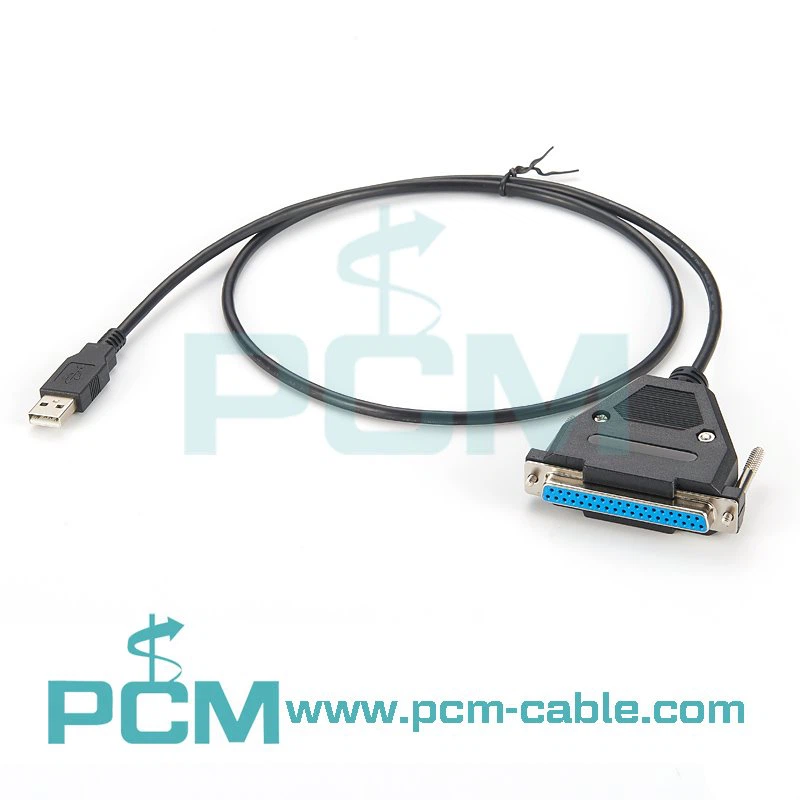

USB To DB37 PCIe Card Cable

This is about a new solution for your PCI card.

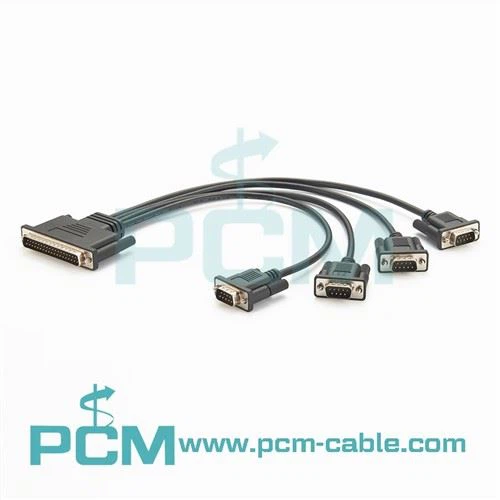

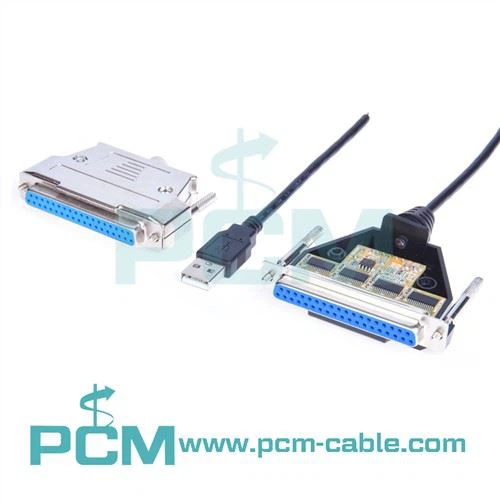

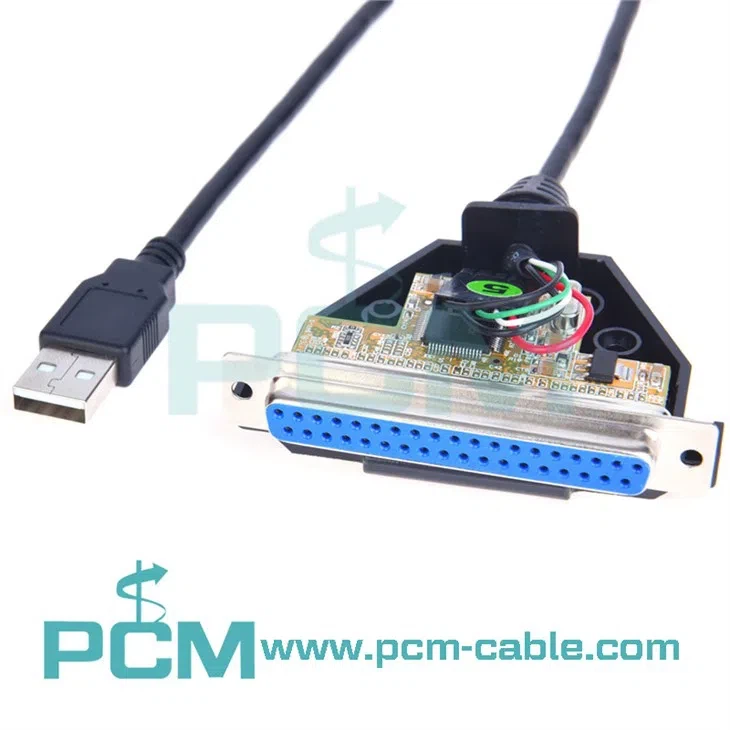

Most of the PCI cards need to be assembled to the PC, then connect to the fan out cables. This will require the PC have space to do the DIY. We can directly make a USB to 2 port or 4 Port DB9 adapter cable, but in this case, the previously bought DB37 to 4 * DB9 Fan out cable is wasted. So our solution is to make a USB to DB37 Cable ( with 4 IC FTDI RS232 IC chips inside, then connect it to the fan out cable )

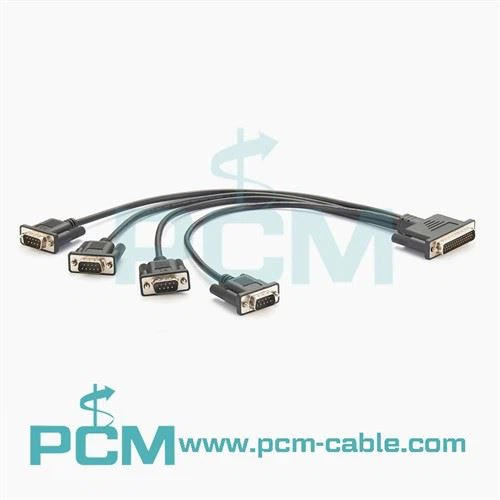

In the same way,  USB to DB25 ( With 2 FTDI RS232 ) ,   USB to DB44 ( With 4  FTDI RS232 )



Specification



Product name	PCI Card Cable
DWG No.	PCM-KW-345
Type	USB to DB37 Serial Cable Extension Solution

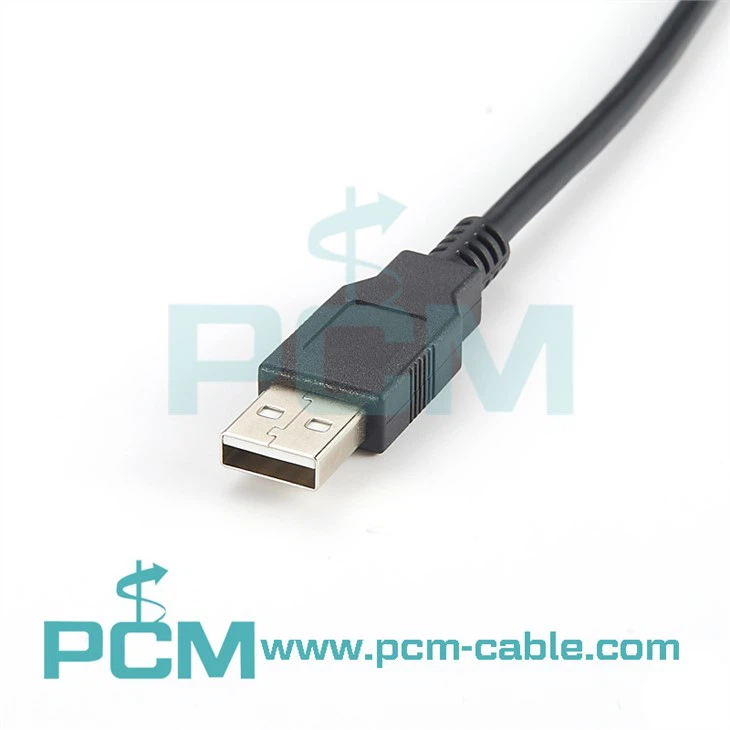

Interface 1	USB Type-A (male)
Interface 2	DB37 female, DB25 female, DB44 female
IC	FT232RL*4PCS+UM213*4PCS+FE1.1S)
Cable jacket	PVC UL2725
Wire gauge	28AWG
Cable diameter	4.5mm
Screws	#4-40UNC
Used with	4 Port PCI Express RS232 Serial Adapter Card with Breakout Cable
Compatibility	Windows, macOS, Linux
Chip	2 or 4 chips



Advantages & Features



High performance: Stable and reliable data transmission ensures the stability of system operation.
Flexibility: Meet the needs of different numbers of serial ports and improve the scalability of the system.
Cost savings: Save the purchase cost of PCI cards and reduce the overall cost of the system.

Easy installation: No internal DIY required, just plug and play, eliminating the worry of PC space limitations.



Applications



Automated industry
Instrumentation
Data collection and monitoring system
communication device
Electronic equipment maintenance
Laboratory equipment
