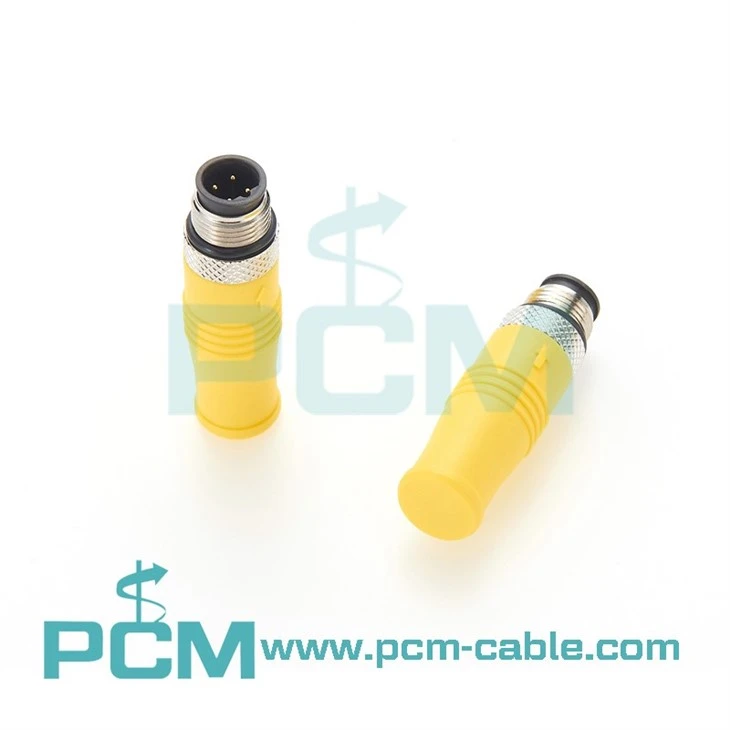

PROFIBUS DP Terminator M12

PCM Cable Co., Ltd. is one of the leading profibus dp terminator m12 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.



PROFIBUS DP Terminator M12 is a device that is used in conjunction with Premier Cable PROFIBUS DP connector to terminate the end of a PROFIBUS DP network. It is designed to reduce reflected waves at the end of a cable, ensuring that data is transmitted accurately and efficiently.



Specification



Product name	Terminating resistor for Profibus DP interface
Resistor	0.25W 390Ω *2 + 0.25W 220Ω
Function	Bus termination
Thread size	M12
No. of pins	4 pin
Type	Male
Encoding	B-coded
Rated voltage	250 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Network protocol	PROFIBUS-DP
Application	For use in PROFIBUS-DP applications





FAQ



Q: Why does the PROFIBUS DP connector need an external resistor? Doesn't your PROFIBUS DP connector have built-in resistors?



A: Premier Cable In order to provide better quality, the process used by our PROFIBUS DP connector is injection molding. Injection molding cannot fit a switch inside the connector to control the resistance. So it needs to be used with our external resistor. Just plug in the resistor when you need it, and just take it off when you don't need it.
