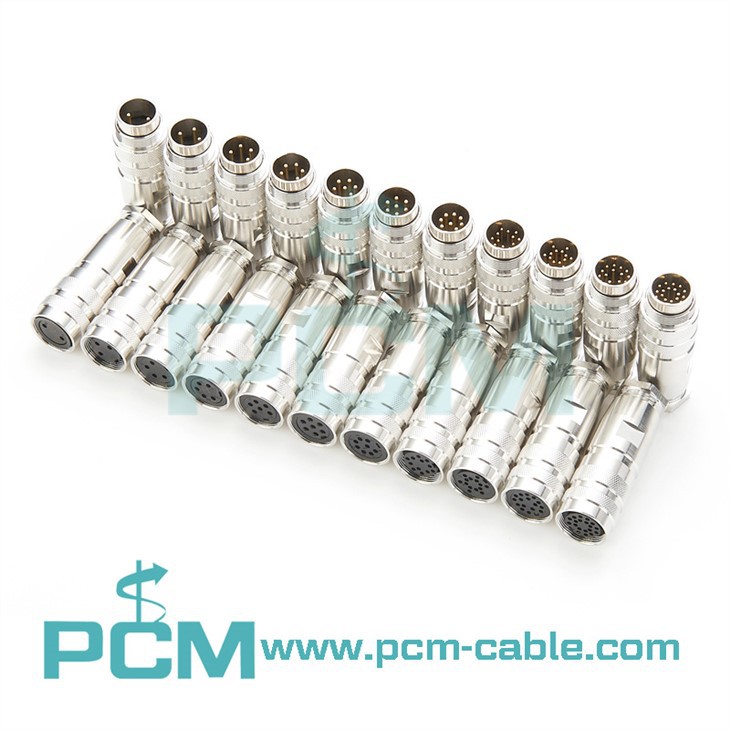

M16 AISG RET Connector

PCM Cable Co., Ltd. is one of the leading m16 aisg ret connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.



About US



Premier Cable is a professional manufacturer of electronic components. Our product line includes M5 connector, M8 connector, M12 connector, M16 connector, M23 connector, etc.



Description



M16 AISG RET Connector is a type of connector used in the telecommunication industry, particularly for the remote electrical tilt (RET) functionality in base station antennas. RET is used to adjust the tilt angle of the antenna's radiation pattern remotely, allowing for efficient signal transmission and reception.





Applications



M16 AISG RET Connector is commonly used in base station antennas and associated equipment, as well as in remote radio heads, tower-mounted amplifiers, and other telecommunication systems that require RET functionality. It enables seamless communication between the base station and antenna, ensuring optimal signal strength and quality.



Features

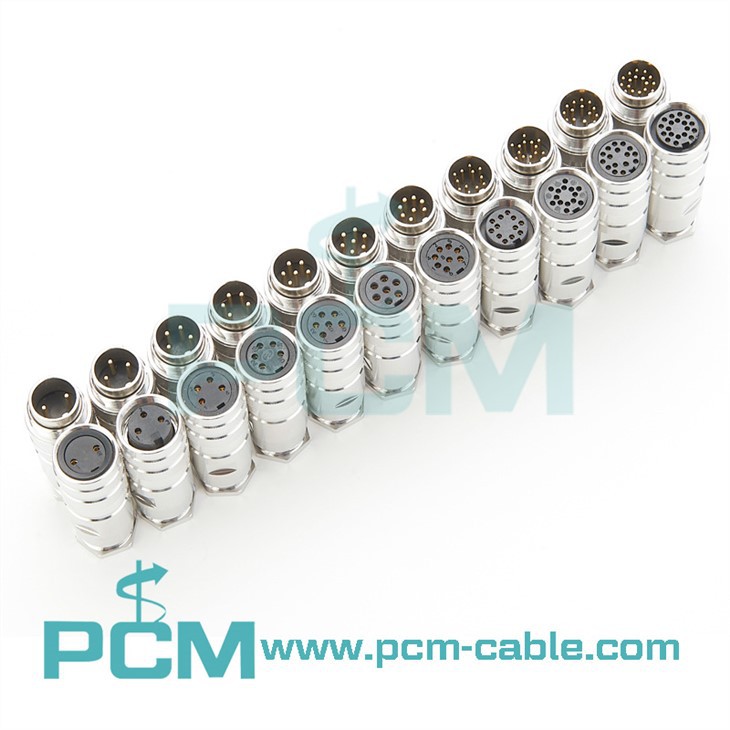

- This C091 M16 circular connector is compatible with AISG 1.1 and AISG 2.0 protocols
- IP68-rated for protection against dust and water ingress
- Gold-plated contacts for reliable signal transmission
- Screw locking mechanism for secure connection
- Designed to withstand harsh outdoor environments







Specifications

- Connector type: Female/Male M16
- Number of pins: 3/4/5/6/7/8/12/14/16/19/24Pin
- Rated voltage: 50 V DC
- Operating temperature range: -40°C to +85°C
- Contact resistance: ≤10 milliohms
- Insulation resistance: 500 megohms at 500 V DC
- Dielectric strength: 1,500 V AC RMS
