XT30 XT60 Panel Mount Connectors

PCM Cable Co., Ltd. is one of the leading xt30 xt60 panel mount connectors manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

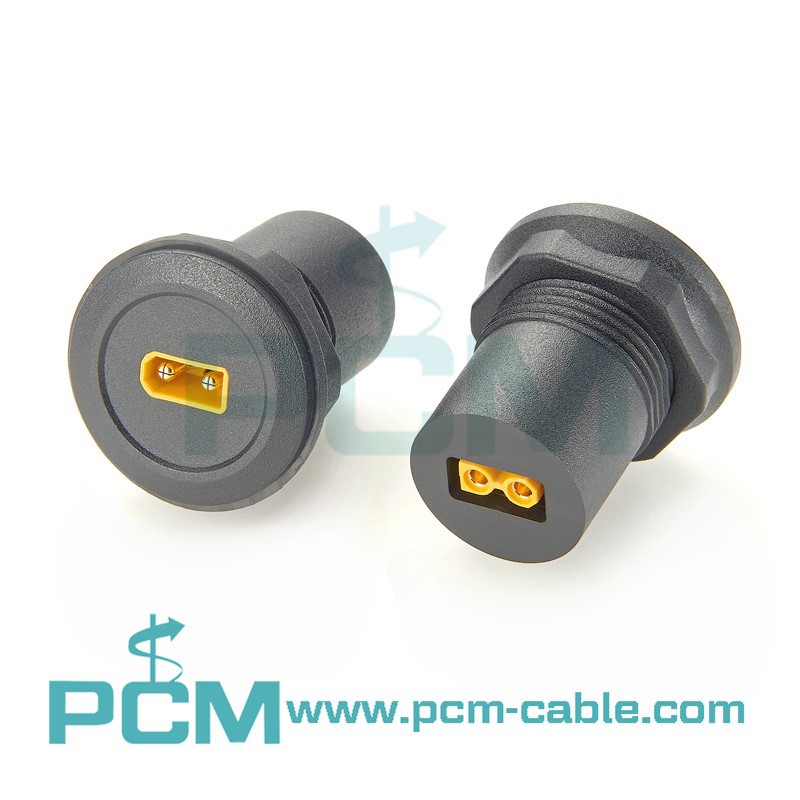

Our XT30 XT60 panel mount connector is designed for electric models, drones and other high-performance devices. It adopts a round thread panel mounting method to ensure a strong and reliable connection. This product has a front XT30 male and a rear XT30 female design, which supports fast and convenient power connection. In addition, we also provide customized options, which can change the front end to XT30 female and the rear end to XT30 male according to your needs.





Product name	XT30 XT60 plug panel mount fixed bracket RC FPV drone connector
DWG No.	PCM-0761
Front connector	XT30 male (can be customized as XT30 female)
Rear connector	XT30 female (can be customized as XT30 male)
Cable recommendation	18AWG
Rated current	30A

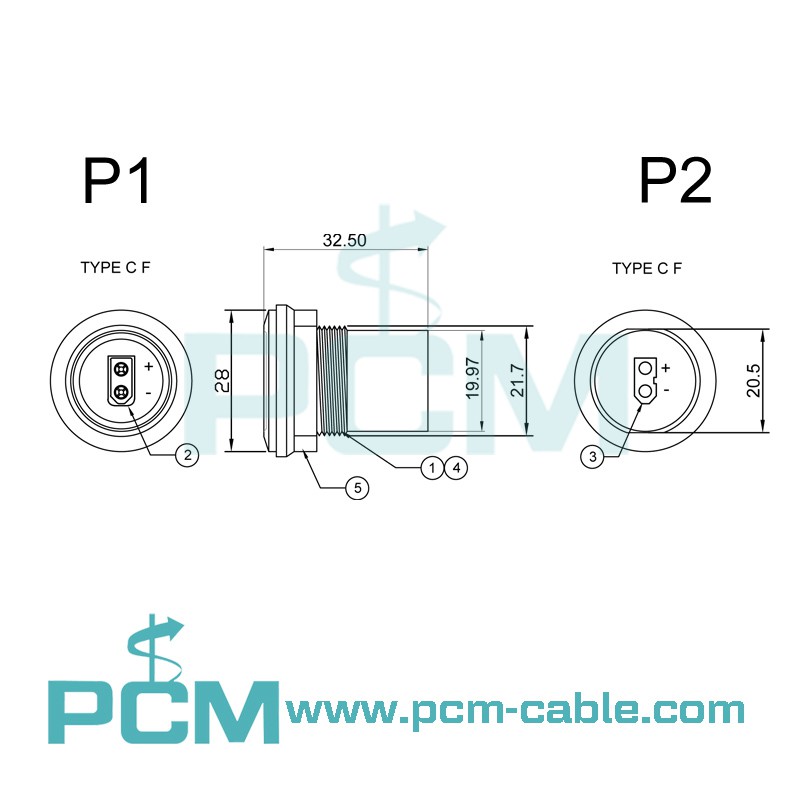

Cutout size	M22







• High current carrying: The XT30 connector is designed to carry up to 30A of current, suitable for most electric models and drone applications.



• Secure installation: The round panel mounting ensures the stability of the connector in various environments and prevents loosening and falling off.



• Customization options: Custom designs can be customized according to requirements, including the configuration of front-end and rear-end connectors to meet different application scenarios.



• Compatibility: Compatible with standard XT30 connectors, easy to connect with existing devices and batteries.



Electric models
UAVs
RC vehicles
Other high-performance power connection requirements







There are several main differences between the XT30 and XT60 connectors:



Rated Current:



• XT30 connector: Rated current is 30A, suitable for low-power devices such as small electric models and drones.
• XT60 connector: Rated current is 60A, suitable for medium to large electric models, drones and other high-power devices, and can carry higher currents.



Size:



• XT30 connector: Smaller and lighter, suitable for applications with strict space and weight requirements.
• XT60 connector: Larger and more durable, suitable for applications that require higher currents, but may be slightly bulky in small devices.



Application scenarios:



• XT30 connector: Mainly used for low-power applications such as small RC devices and micro drones.
• XT60 connector: Mostly used in high-performance drones, RC racing cars, FPV equipment, etc., which require higher current support.



Connection stability:



Both use anti-vibration and anti-reverse connection designs, but the XT60 connector provides stronger connection stability in high-vibration environments due to its larger size.



Compatibility:



XT30 and XT60 are not compatible. The size and current requirements between the plug and socket are different, so you need to make a judgment based on the power requirements of the device when choosing.





Premier Cable is a professional panel mount cable manufacturer. We welcome customers to propose personalized requirements, including connector type, cable length, cable specifications, etc. Please contact our sales team to discuss your specific requirements.
