Micro DB9 To DB9 Serial Cable

This micro DB9 to DB9 serial cable is designed with the J30J series MIL-DTL-83513 Micro D-sub plug, which is fully compatible with the Micro DB9M-DB9M serial cable produced by EMC. This cable is used to establish a reliable serial connection between the service laptop and the storage processor (host) of the EMC storage array, ensuring the smooth operation of the EMC DX, AX, CX3 and CX4 series storage arrays.



One end of the cable is a Micro DB9 male plug, and the other end is a standard DB9 male plug. It connects the standard DB9 serial interface of the service laptop to the Micro DB9 interface of the storage processor, while providing efficient data transmission and electromagnetic shielding, ensuring that your storage device continues to operate stably in harsh environments.





Product name	Null modem micro DB9 to DB9 male serial cable
DWG No.	PCM-0764
Compatible with	Molex 834219221, 834219036, 834219037, 834219038, 834219039, 834219286; EMC 038-004-062; EMC DB9M-DB9M; EMC 038-004-052; EMC 038-003-084
Connector 1	DSUB 9pin, DB9 connector, male or female
Connector 2	J30J series, MIL-DTL-83513, micro DB9 connector, male
Cable length	1m or customized
Cable jacket	PVC UL2464
Wire gauge	28AWG
Cable diameter	5mm
Pinout	Straight pinout or customized
Screws of micro DB9 connector	UNC#2-56
Screws of DB9 connector	UNC#4-40
Shielding	100% EMI shielding
Applications	EMC storage arrays, service laptops, storage processors, etc.
OEM	Support
Samples	Support







• Dual-interface design: One end is a J30J series MIL-DTL-83513 Micro DB9 male plug, and the other end is a standard DB9 male plug, ensuring compatibility and wide applicability.



• Fully compatible with EMC Micro DB9M-DB9M serial cable: This cable is 100% compatible with the Micro DB9M-DB9M serial cable produced by EMC, and is an ideal replacement solution for EMC storage devices.

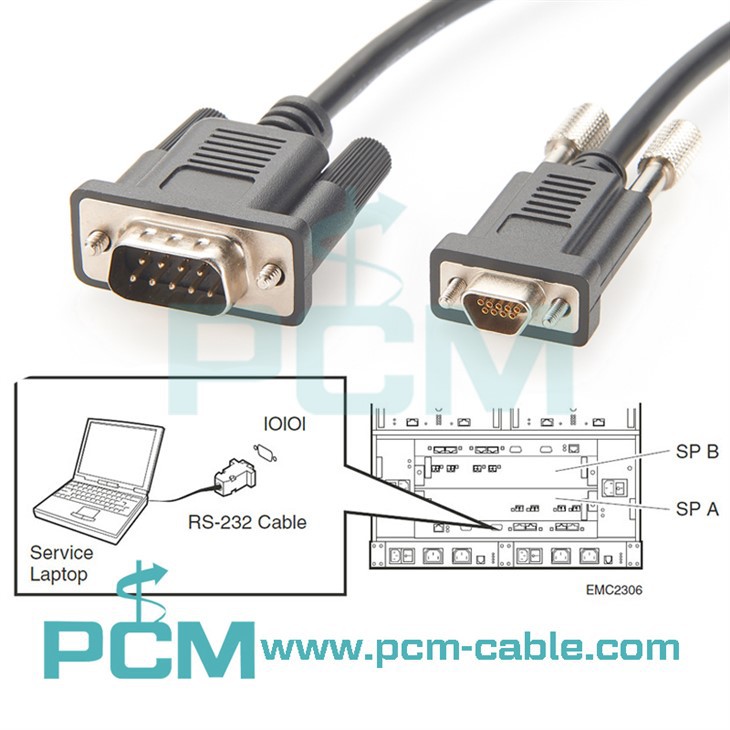

• Standard DB9 serial port connection: Connect the standard DB9 serial interface of the service laptop to the Micro DB9 port of the storage processor for efficient serial communication.



• Fully shielded design: The micro DB9 serial cable is equipped with a comprehensive electromagnetic interference (EMI) shielding layer to effectively protect data transmission and ensure signal stability and integrity.



• High reliability and durability: The use of high-strength materials and precision manufacturing processes ensures that the cable can provide long-term reliable connections in industrial, military, or other harsh environments.



• Key application scenarios: This micro DB9 to DB9 cable is applicable to the connection and maintenance of EMC DX, AX, CX3 and CX4 series storage arrays, connected to the storage processor (host) through the Micro DB9 port.





Q1: What communication protocols does this J30J Series MIL-DTL-83513 cable support?

A: This cable supports multiple serial communication protocols, including RS-232 and RS-422. In EMC storage arrays, it is often used for RS-232 serial communication to manage storage processors and other peripheral devices.



Q2: Can this micro DB9 cable be used for other devices or application scenarios?

A: Yes, in addition to EMC storage arrays, this micro DB9 serial cable is also suitable for other devices and systems that use Micro DB9 and standard DB9 serial connections, such as industrial control systems, embedded devices, and communication modules.



Q3: Does this micro DB9 to DB9 cable support any standards?

A: The Micro DB9 plug of this cable complies with the MIL-DTL-83513 standard. In addition, the cable itself has passed the EMI shielding test to ensure compliance with relevant industry standards.
