M12 Y-Coded Power + Data Hybrid Extension Cable: Features, Applications and Selection Guide
Learn how the PCM-HD-0158 M12 Y-coded hybrid extension cable combines CAT5e 100Mbps data, 6A/60V AC/DC power, IP67 protection and shielded TPU construction for industrial automation, remote I/O, robotics and compatible industrial Ethernet systems.

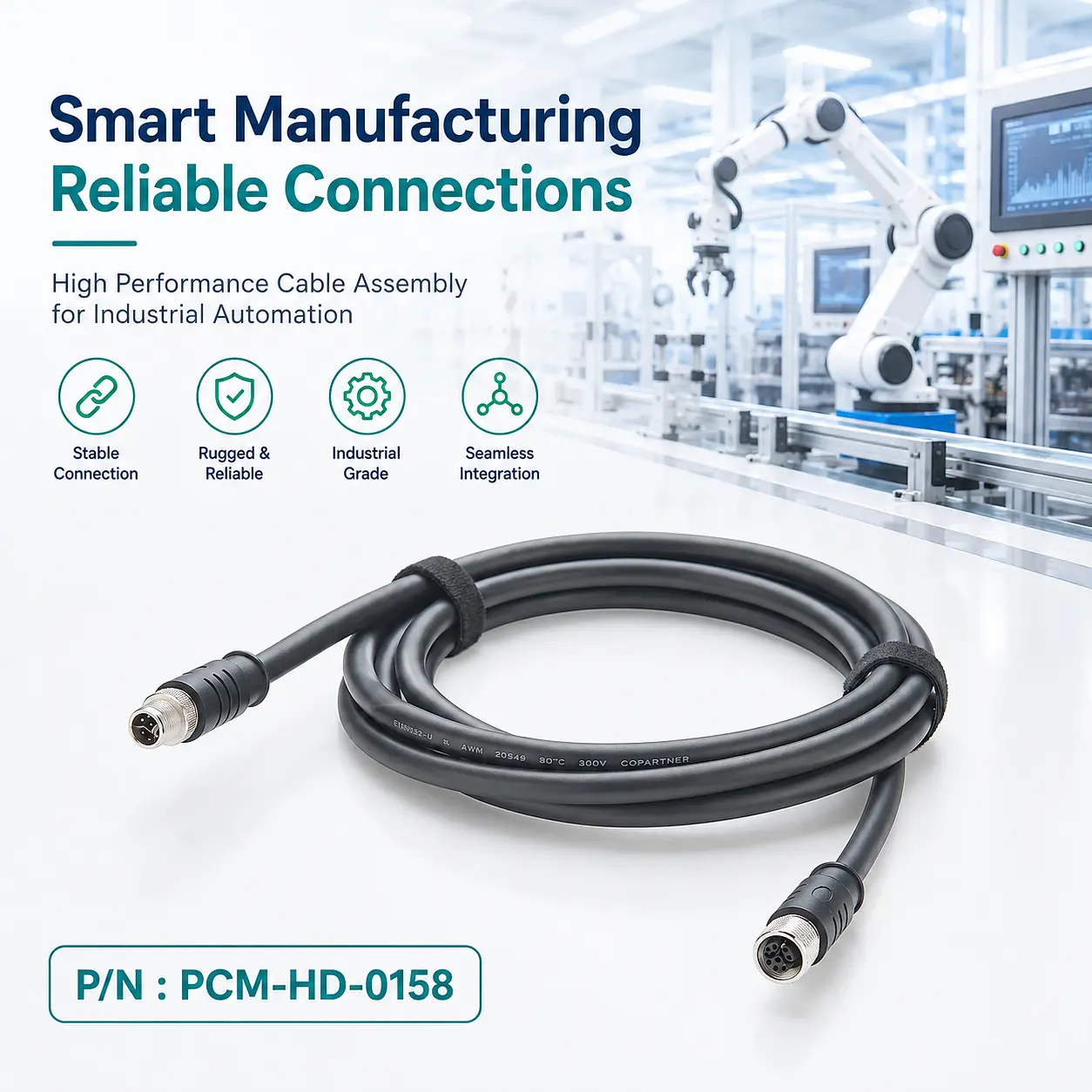

PCM-HD-0158 is a 3m M12 Y-coded 8-pin male-to-female hybrid extension cable integrating CAT5e 100Mbps Ethernet data and up to 6A/60V AC/DC power. It features IP67 protection, shielded TPU construction and gold-plated contacts for industrial automation, remote I/O, robotics and compatible industrial Ethernet equipment.
Quick Product Introduction
The M12 Y-coded structure is standardized for mixed-connection scenarios of M12 connectors with data and power contacts; industry products also commonly use Y-coded 8-pin configurations for 100Mbps data and independent power circuits.
| Product Name | M12 Y-Coded Power + Data Extension Cable |
| Premier Cable P/N | PCM-HD-0158 |
| Connector A | M12 Y-Coded 8-Pin Male |
| Connector B | M12 Y-Coded 8-Pin Female |
| Length | 3000±50mm |
| Protection | IP67 |
| Power Cable | 20AWGx 4C |
| Data Rate | CAT5e, Up to 10oMbps |
| Data Rated Current | 0.5A |
PCM-HD-0158 vs Independent Data + Power Cable
| Comparison | PCM-HD-0158 | Independent Data + Power Cable |
|---|---|---|
| Data + Power | Single-wire integration | Two lines |
| Installation Space | More Compact | Larger |
| CAT5e 100Mbps | Yes | Depends on network cable |
| M1eY-Code | Yes | Usually No |
What Is an M12 Y-Coded Power + Data Cable?
An M12 Y-coded power supply + data transmission integrated extension cable is a type that combines:
Industrial Ethernet Data + Equipment Power A hybrid cable component integrated into one composite cable and one set of M12 connectors.
PCM-HD-0158 uses:
M12 Y-Coded 8Pin Male → Hybrid Cable → M12 Y-Coded 8Pin Female
Among them, 8 pins are divided into:
4 Signal Pins + 4 Power Pins
The data section is responsible for 100Mbps Ethernet communication;
The power component is responsible for powering the device.
Therefore, its essence is:
Passive Hybrid Extension Cable,it is not an protocol converter nor a voltage conversion module.
PCM-HD-0158 →
What Is M12 Y-Coding ?
Y-Code is a type of mechanical Coding for M12 hybrid connectors.
One of its main purposes is:
Prevent Incorrect Mating
It uses a specific mechanical Keying structure to reduce the risk of incorrect insertion between different M12 interfaces.
IEC 61076-2-113 specifies M12 threaded locking connectors with power and signal contacts, and clearlydefines different Coding for preventing incorrect cross-insertion with other interfaces of the same size.
Therefore:
Y-Code ≠ Ethernet Protocol
It describes the mechanical interface and contact system of the connector, not thecommunication protocols such as PROFINET or EtherCAT themselves.
Y-coding defines the mechanical keying of the hybrid M12 connector. It helps prevent incorrect mating but does not define the network protocol.
Common Industrial Connectivity Challenges
Core Product Value
PCM-HD-0158
The core product value of PCM-HD-0158 can be summarized as follows:
◆ Integrated Power + Data
The M12 Y-coded 8-pin hybrid interface combines 100Mbps Ethernet data and equipment power in a single cable, reducing separate power and network cables while simplifying system wiring and connector configuration.
◆ 100Mbps CAT5e Industrial Ethernet Link
Two pairs of 26AWG twisted differential conductors provide a CAT5e 100Mbps data channel for compatible PROFINET, EtherCAT, EtherNet/IP and other Industrial Ethernet equipment.
◆ 6A / 60V AC/DC Power Capability
Four dedicated 20AWG power conductors support ratings up to 6A and 60V AC/DC, providing a reliable power connection foundation for remote I/O, sensor nodes, control modules and automation equipment.
◆ IP67 + TPU Industrial Protection
M12 threaded locking, IP67 sealing, a durable TPU jacket and gold-plated contacts help improve connection reliability in industrial environments exposed to dust, moisture, mechanical wear and vibration.
Products Display
Similar products
Compatibility Statement
Compatibility Verification
PCM-HD-0158 uses M12 Y-Code 8-pin male and female connectors, allowing data and power circuits to be integrated within a single connector system. However, successful mechanical mating does not guarantee complete electrical compatibility.
Before selection and installation, verify Y-coding, connector gender, pin assignment, Ethernet differential-pair mapping, power polarity, voltage and current ratings, device PHY and communication protocol to prevent connection failures or equipment damage caused by incorrect wiring or power definitions.
Technical Compatibility Notice
For PCM-HD-0158, CAT5e 100Mbps describes the capability of the Ethernet data path, while 6A/60V refers to the electrical rating of the separate power circuit; these specifications should not be interpreted interchangeably.
Compatibility with PROFINET, EtherCAT, EtherNet/IP and other Industrial Ethernet protocols also depends on the connected device PHY, network topology, pin assignment and system configuration. IP67 protection can only be achieved when compatible connectors are correctly mated, fully locked and properly sealed under the specified installation conditions.
How to Choose M12 Y-Code Hybrid Cables ?
Verify Connector & Mechanical Compatibility
First verify that the equipment uses an M12 Y-Code 8-pin interface and confirm the coding, pin count and connector gender. The standard PCM-HD-0158 configuration is P1 Male + P2 Female. A-Code, D-Code, X-Code, L-Code and other coding types should not be considered compatible based only on similar appearance. Different equipment interfaces may require another configuration or customization.
Verify Pinout, Data Rate & Protocol
Verify the complete 4 Data Pins + 4 Power Pins assignment, including Ethernet differential-pair mapping and power polarity. PCM-HD-0158 provides a CAT5e / 100Mbps physical data link for compatible PROFINET, EtherCAT, EtherNet/IP and other Industrial Ethernet systems. Final protocol compatibility depends on the device PHY, pin assignment and network configuration.
Confirm Voltage, Current & Load Requirements
The PCM-HD-0158 power circuit is rated up to 6A / 60V AC/DC, but actual operating conditions must match the connected equipment. Selection should consider operating voltage, continuous current, device load, cable temperature rise, connector contact capacity and voltage drop caused by cable length rather than relying only on maximum ratings.
Check Cable Length & Operating Environment
The standard cable length is 3m. Selection should also consider installation distance, routing space, dust, moisture, temperature, chemical exposure and mechanical vibration to ensure that IP67 protection, cable materials and mechanical performance meet the application requirements. Longer cables may require additional evaluation of voltage drop, signal attenuation, EMC performance and installation space.
Customization Capabilities
↕ M12 Y-Code Male & Female Connector Customization
Male-to-female, male-to-male, female-to-female and panel-mount configurations can be customized according to equipment requirements, including connector orientation, cable exit direction and threaded locking structure.
□ Cable Length Customization
The standard length is 3m, while custom lengths can be developed according to cabinet, equipment and field-node distances, with signal attenuation, voltage drop and routing requirements evaluated accordingly.
◉ Pin Assignment Customization
The four data pins and four power
pins can be customized according to the target equipment, including Ethernet differential-pair mapping, power polarity, ground configuration and other required connections.
⚙ Power Conductor Specification Customization
Power conductor AWG can be selected according to operating current, voltage, cable length and thermal requirements to control voltage drop and meet equipment power demands.
⌘ TPU & Cable Jacket Material Customization
Different grades of TPU or other industrial jacket materials can be selected according to abrasion resistance, flexibility, oil resistance, operating temperature, chemical exposure and mechanical-motion requirements.
◇ Panel-Mount Structure Customization
M12 Y-Code male or female connectors can be developed as panel-mount interfaces for control cabinets, I/O boxes and machine enclosures, providing a fixed Power + Data connection point.
Conclusion：
PCM-HD-0158 integrates 100Mbps Ethernet data and industrial power into one M12 Y-coded hybrid cable. The design reduces connector count and installation complexity while providing screw locking, shielding, IP67 protection and industrial environmental performance.
Compatibility should always be determined from the exact connector coding, pin assignment, Ethernet physical layer, supply voltage, current requirement and equipment specifications.
Product FAQ
Why Is M12 Y-Code Used for Data + Power ?
Y-coded hybrid interfaces combine separate signal and power contacts in one compact industrial connector.
How Are the 8 Pins Used ?
The connector provides four signal and four power contacts, but exact pin functions must follow the specified pin assignment.
Is CAT5e Limited to One Industrial Protocol ?
CAT5e is a physical cabling specification rather than an industrial Ethernet protocol. Protocol compatibility depends on the connected devices.
Why Is Shielding Important ?
Shielding helps protect the Ethernet signal pairs from electromagnetic interference generated by industrial machinery.
Can Power Conductors Interfere with Data ?
Proper pair construction and shielding help reduce coupling between power and data circuits, but system-level EMC design remains important.
Why Use M12 Screw Locking ?
M12 screw locking provides secure mechanical retention for industrial vibration and machine environments.
