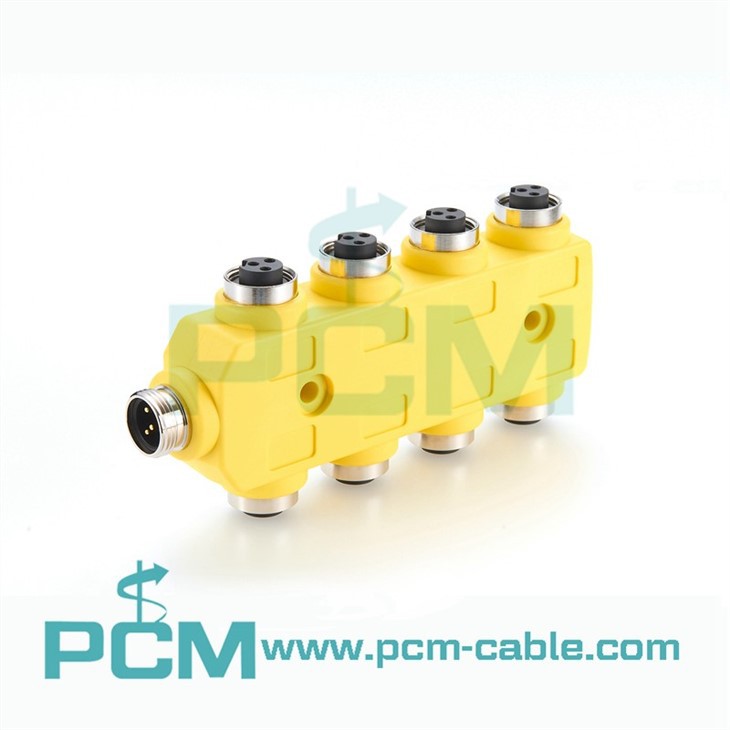

Mini-Change Side Mount 3 Pole 8 Port Pass Thru Box
PCM Cable Co., Ltd. is one of the leading mini-change side mount 3 pole 8 port pass thru box manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
DeviceNet Distribution Box 3 Pin MINI-Change 7/8"-16UN
Advantages
1. Space-saving design: The compact size of the DeviceNet Junction Blocks 3 Pin 8 Port saves valuable space and allows for easy installation in tight spaces.
2. Durable construction: The rugged design of inner and outer molding ensures long-lasting performance and protects against environmental hazards.
3. Easy to Install: The MINI-Change 7/8"-16UN DeviceNet Distribution Hub can be easily installed on the side of a machine or equipment, and the parallel-wired connections simplify wiring tasks.
4. High compatibility: The 7/8" Power Junction Box supports eight ports, making it suitable for a wide range of applications and equipment.
5. High performance: The MPIS Multiport Box supports high-speed and high-bandwidth data transmission.
| Product name | Actuator and Sensor box 7/8" Connection |
| Bus I/O | Mini-Change |
| Cable Connector Orientation | Straight |
| Home Run Connector | Mini-Change 3 pole |
| Poles | 3 |
| Poles (wired) | 3 |
| Ports | 8 |
| Wiring Configuration | Single I/O per Port |
| Current - Maximum per Contact | 7A |
| Functional Wiring | Parallel |
| Voltage - Maximum | 600V AC/DC |
| Wire AWG | 16AWG/1.5mm² UL1015 |
| Contact Material | Gold-plated Copper |
| Shell Material | Nickel plated copper |
| Locking Method | 7/8'' Threaded Connection |
