DMX 512 Signal Tester XLR 3-Pin

PCM Cable Co., Ltd. is one of the leading dmx 512 signal tester xlr 3-pin manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.



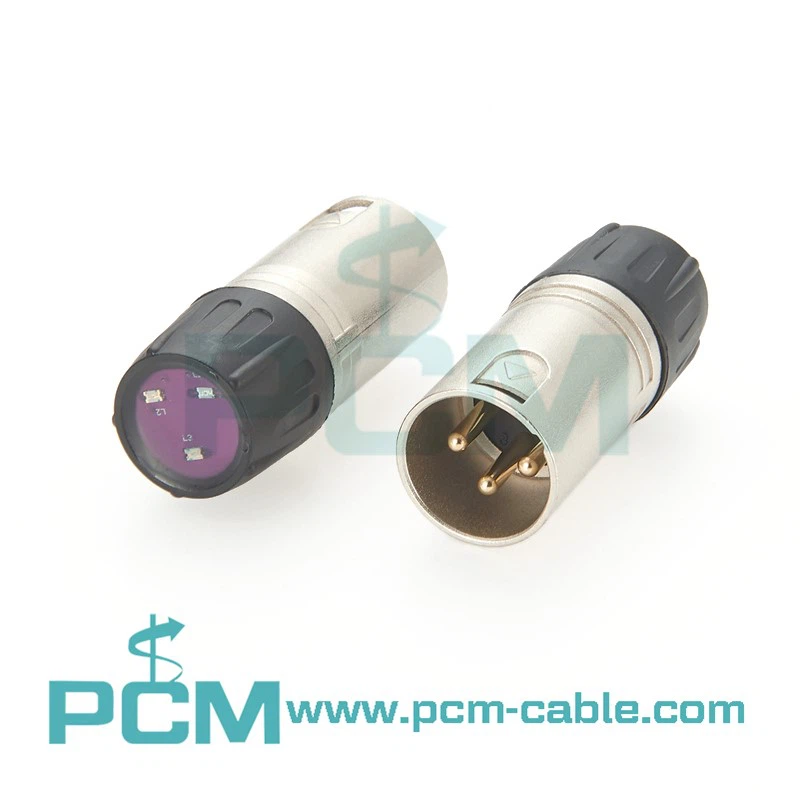

DMX 512 Signal Tester XLR 3-Pin is a tool designed for stage lighting signal detection, aiming to quickly and accurately diagnose and troubleshoot DMX512 signal line faults. It is suitable for various stage lighting equipment, especially dynamic headlights, beam lights, amplifiers, PAR lights, speed lights, etc. Through simple operation and clear indicator light feedback, it helps technicians quickly locate signal problems and improve the stability of stage lighting equipment.





Product name	DMX512 stage lighting signal detector line tester for moving head beam lights amplifier troubleshooter easy to use portable
DWG No.	PCM-S-0634
Interface	3 Pin DMX XLR, male
Indicator light color	Red, green, blue
Applicable equipment	Headlights, beam lights, amplifiers, PAR lights, speed lights, etc.







• Easy operation: After inserting the signal line, use the indicator light to instantly display the signal status, easily diagnose faults, and avoid complicated operation procedures.



• LED indicator display: Through the red, green and blue indicator lights, the status of each pin of the DMX 512 signal is intuitively displayed.



• Widely compatible: Suitable for various DMX512 signal lines, especially for stage lighting equipment such as dynamic headlights, PAR lights, LED lights, etc.



• Portable design: Small size, easy to carry, quick on-site testing to ensure the normal operation of the equipment.



• Efficient troubleshooting: The detector can judge the quality of the signal line, help find the fault point, and solve problems such as signal failure and uncontrolled lamps.







1. Insert the DMX signal tester: insert the DMX signal line into the tester, and detect the signal transmission status.



2. Indicator light display status:



• Red light on (Pin 1 - GND): indicates that the ground wire is short-circuited or open-circuited.
• Green light on (Pin 2 - Data-): indicates that the negative pole is short-circuited or open-circuited.
• Blue light on (Pin 3 - Data+): indicates that the positive pole is short-circuited or open-circuited.



3. Abnormal indication:



• A single red light is on, indicatesthat pin 1 (ground wire) is short-circuited or open-circuited.
• A single green light is on, indicatesthat pin 2 (negative pole) is short-circuited or open-circuited.
• A single blue light is on, indicates that pin 3 (positive pole) is short-circuited or open-circuited.
• Red and green lights are on at the same time: indicates that the ground wire and the negative pole are short-circuited.
• Red and blue lights are on at the same time: indicates that the ground wire and the positive pole are short-circuited.
• Green and blue lights are on at the same time: indicates that the negative pole and the positive pole are short-circuited.





• This DMX 512 signal tester is only used to test DMX512 lighting signals. It is strictly forbidden to use it for audio equipment, dimming consoles, etc. Otherwise, the detector may be burned out.
• Due to the different signal refresh rates of different lighting consoles, the LED indicator may flicker, which is normal and does not affect the use.
