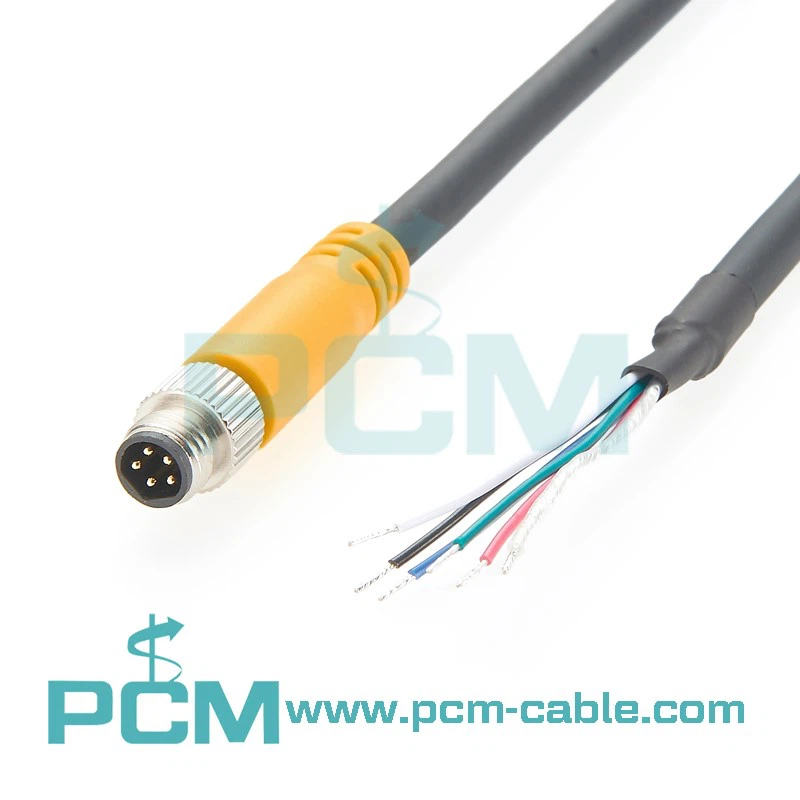

Breakout Cable M8 To Flying Lead Camera Trigger Cable For Cognex In-Sight 8000 Series

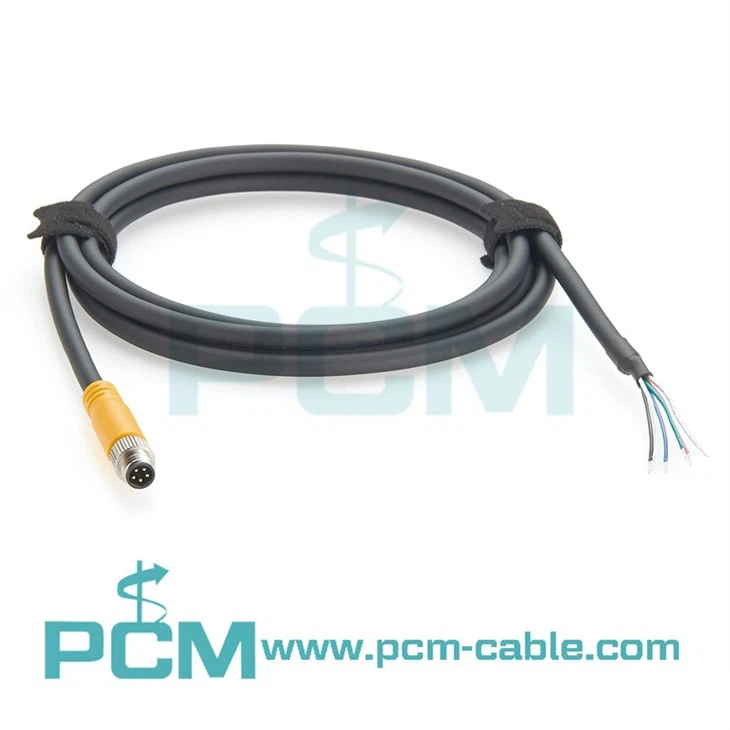

M8 5 Pin to open end industrial machine vision Camera Framegrabber GPIO Trigger Cable，M8 5 Pin Sensor Actuator Breakout Cable for Cognex In-Sight 8000 Series

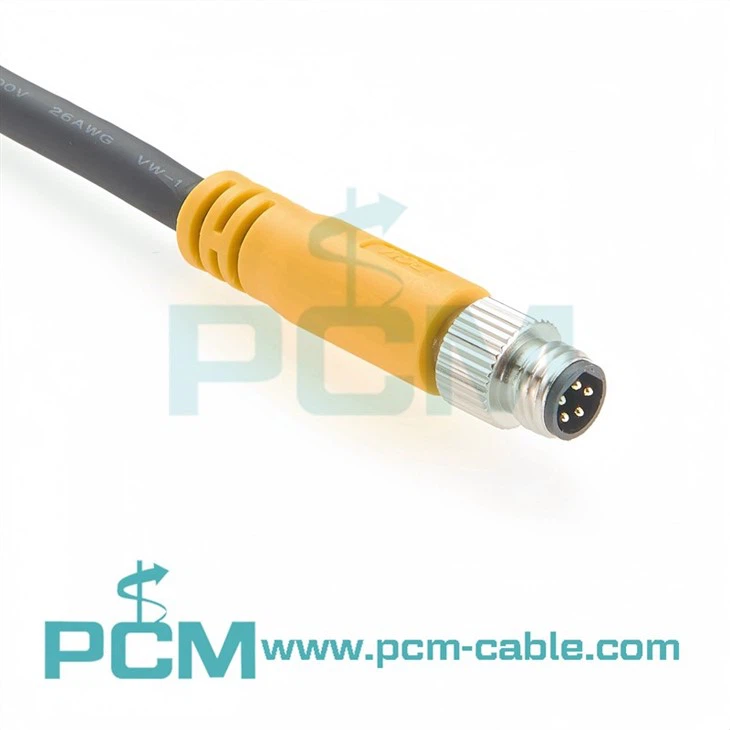

M8 Breakout Cable for Triggering & High-Speed IO Connections with Cognex In-Sight Vision Systems
M8 to Flying Lead Breakout Cable for Cognex In-Sight 8000 Series Camera Trigger and High-Speed IO
M8 Breakout Cable for Triggering & High-Speed IO Connections with Cognex In-Sight Vision Systems

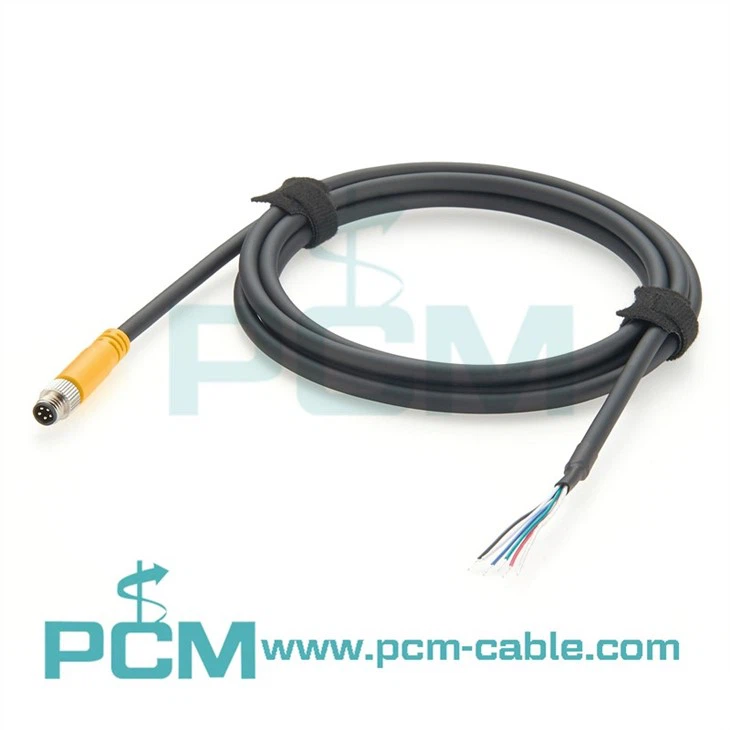

Industrial Breakout Cable M8 Connector for Vision System Triggering – Compatible with Cognex In-Sight 8000
M8 5 Pin GPIO IO Power Trigger Cable for In-Sight Series 8000 8200 8400 8405 Micro 2000 compatible with Cognex CCB-M8IO-02, CCB-M8IO-05, CCB-M8IO-10
Breakout Cable M8 To Flying Lead Camera Trigger Cable For Cognex In-Sight 8000 Series
PCM Cable Co., Ltd. is one of the leading breakout cable m8 to flying lead camera trigger cable for cognex in-sight 8000 series manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
This Breakout Cable uses an M8 connector to reliably connect the I/O interface of the vision system to external devices (such as PLC, trigger sensor or strobe light), supporting signal triggering and control in a variety of industrial applications. Compatible with Cognex In-Sight 8000 series vision systems.
The other end adopts a flying lead design, which is convenient for flexible connection with the target device, and can easily realize the quick connection of the vision system trigger and high-speed I/O signal to meet the needs of various industrial automation applications.
Specification
| Product name | M8 5 pin to open end industrial machine vision camera framegrabber GPIO trigger cable |
| DWG No. | PCM-S-0578 |
| Compatible with | Cognex CCB-M8I0-00; CCB-M8I0-02, CCB-M8I0-05, CCB-M8I0-10, CCB-M8I0-15 |
| Connector 1 | M8 connector, 5-pin, B-code, male |
| Connector 2 | None, flying lead |
| Cable length | 0.6m, 2m, 5m, 10m, 15m or customized |
| Cable diameter | 5.5mm |
| Wire gauge | 26AWG |
| Cable jacket | UL2464 PVC, high flex |
| Protection level | IP67 |
| Applicable for | Cognex in-sight 8000 8200 8400 8401 8402 8405 8505P Micro 2000 series |
Features
- This M8 break out cable is designed for Cognex In-Sight 8000 series vision systems to ensure stable compatibility.
- M8 connector connects to the I/O interface of the vision system for reliable signal transmission.
- Flying lead design provides flexible connection options.
- This M8 to flying lead trigger cable supports connecting trigger signals and high-speed I/O signals to external devices such as PLC, trigger sensors, strobe lights, etc.
- High-quality and durable materials ensure long-term stable use.
Connection method
- Connect the M8 connector of the Breakout Cable to the I/O interface of the vision system.
- Connect the trigger signal line and high-speed I/O signal line to the appropriate device (such as PLC, trigger sensor or strobe light, etc.).
Applicable scenarios
- Connection between machine vision system and external control equipment
- Trigger and high-speed pulse signal transmission in industrial automation
- Signal connection for PLC, trigger sensor, strobe light and other equipment
