6mm 1000V 100A 120A Energy Storage Connector Receptacle
PCM Cable Co., Ltd. is one of the leading 6mm 1000v 100a 120a energy storage connector receptacle manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

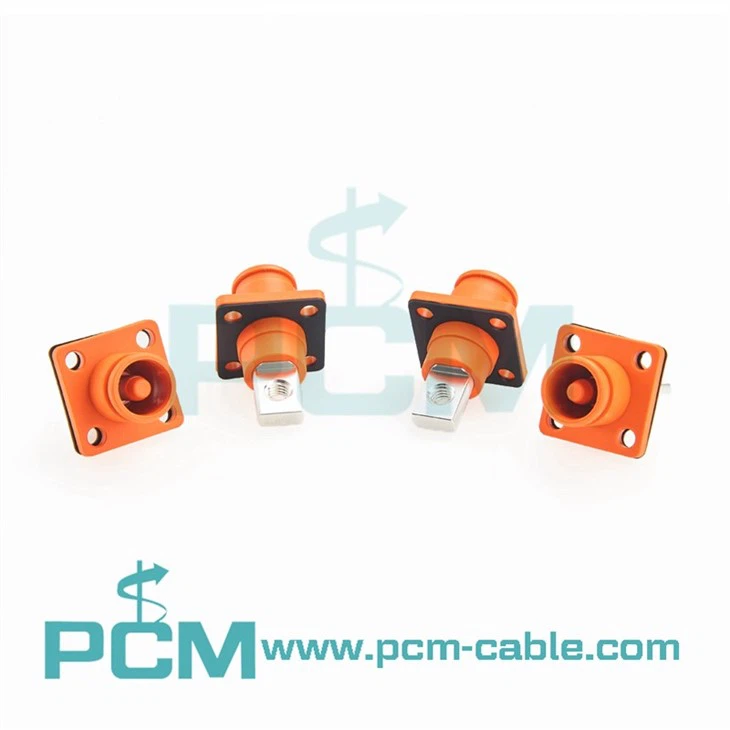

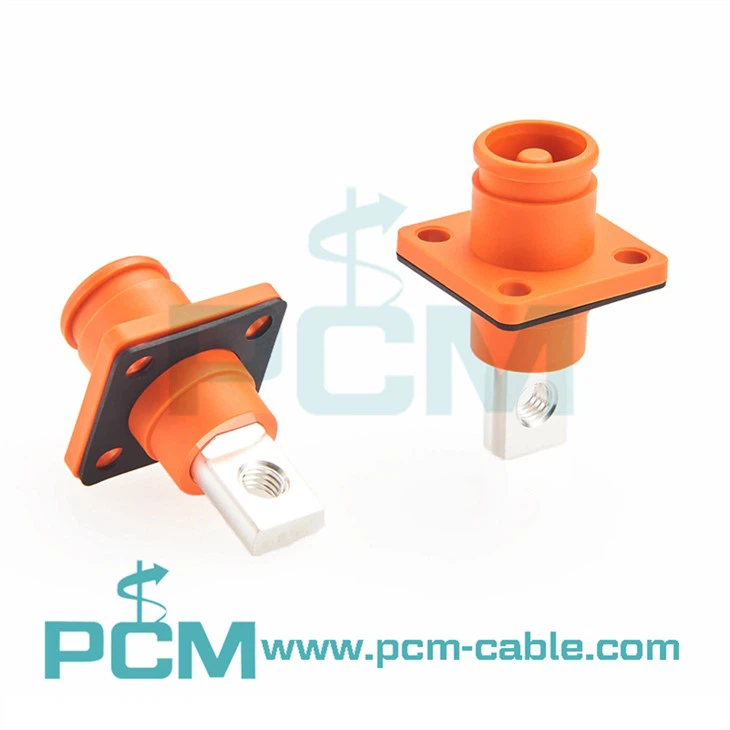

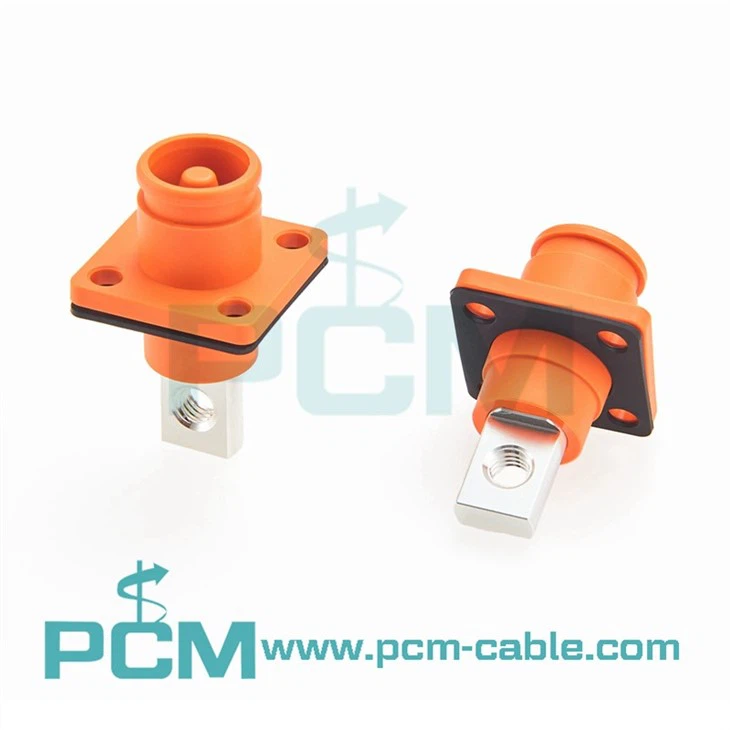

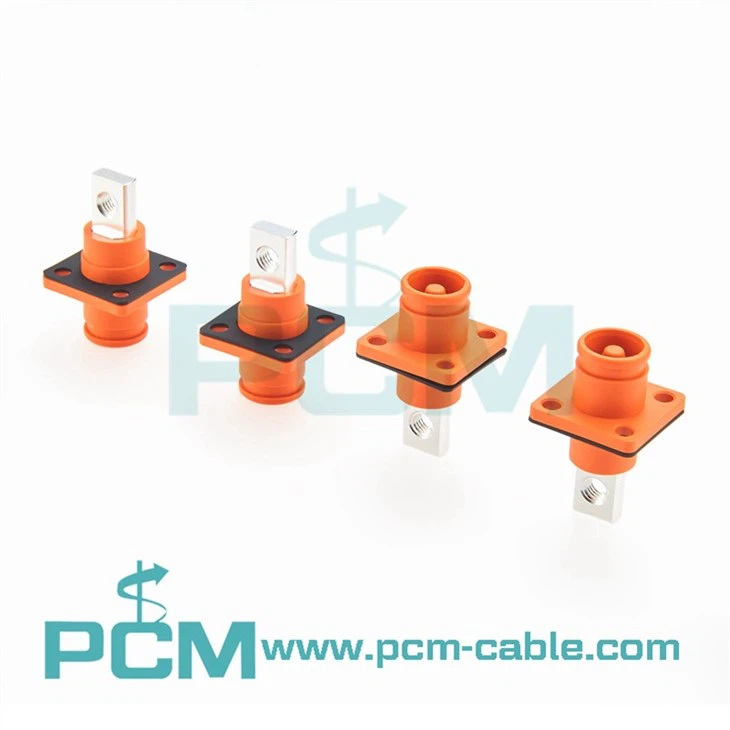

The PCM-S-OR-6 Socket is a high-current HV energy storage connector receptacle designed for lithium battery systems, electric vehicles, and renewable energy applications. With its bright orange housing, it provides clear visual safety coding, helping engineers and technicians identify high-voltage connections at a glance.
This female straight socket features a 6.0 mm Radsok terminal, supporting up to 120A at 1000V DC, with exceptional low-resistance performance and IP67 watertight sealing for reliable use in harsh conditions.
Specifications
| Product Name | Energy Battery Storage Connector Socket Female Straight 6mm IP67 Orange |
| Product Model | PCM-S-OR-6 |
| Rated Voltage | 1000V DC |
| Rated Current | 100A (16mm² / 6AWG), 120A (25mm² / 4AWG) |
| Radsok Size | 6.0 mm |

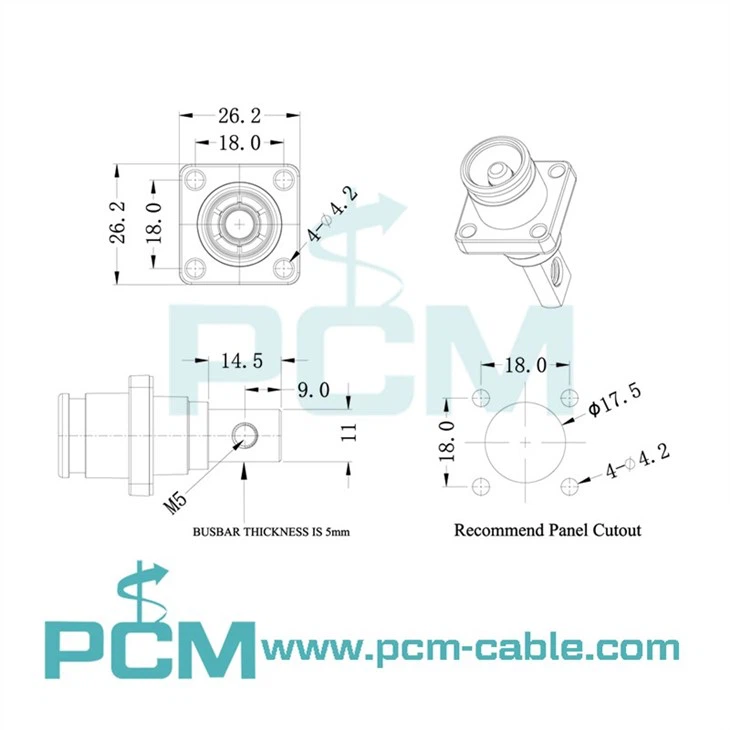

| Mounting Hole Size | 18mm |
| Contact Resistance | ≤ 0.2 mΩ |
| Insulation Resistance | 3000 VDC |
| Mating Cycles | 1000 Times |
| Housing Material | Nylon UL94-V0 (Black) |
| Sealing | Silicone, IP67 |
| Operating Temperature | -40°C ~ +125°C |
Applications
- EV battery energy storage connectors – Reliable receptacle for electric cars, motorcycles, and e-bikes.
- Solar and wind power storage – Safe socket interface for renewable energy connectors.
- Portable lithium battery packs – High voltage connector for outdoor mobile power.
- Industrial UPS systems – Supporting continuous power flow in high-demand scenarios.
