FAKRA Bulkhead Straight Plug To SMA Male Plug Cable Assembly Using RG174 Coax

Specifications

Features

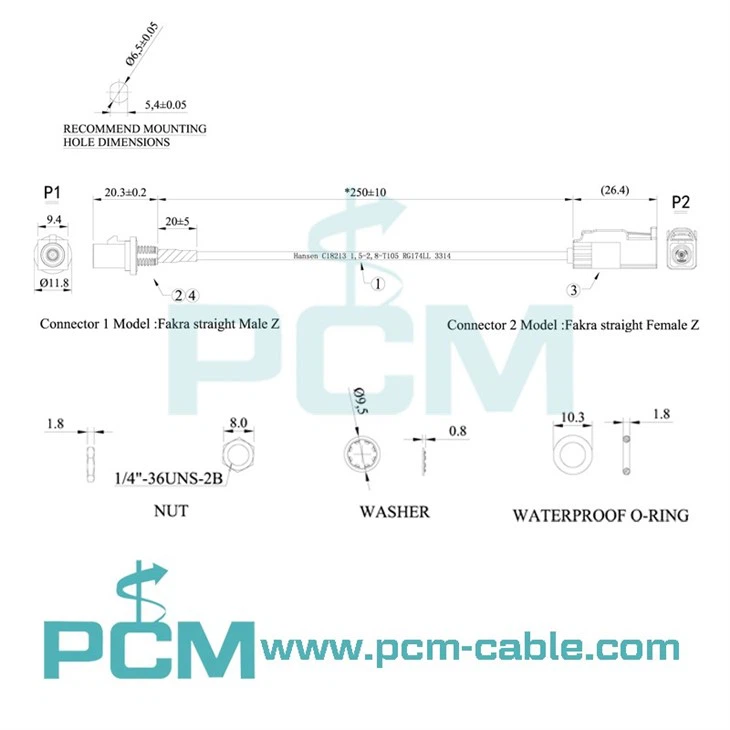

• The FAKRA end is designed as a bulkhead and supports panel installation. The recommended opening size is 6.5mm, which is convenient and quick to fix.

• The RG174/U coaxial cable with high shielding performance is used to effectively reduce signal loss and improve transmission stability.

• The connector uses a gold-plated pin core and a stainless steel shell, which is highly durable and can withstand vibration and temperature differences in the automotive environment.

• The impedance is 50 Ohm and the frequency range is DC to 6 GHz, meeting the needs of high-precision and high-speed signal transmission.

• Designed for automobiles: GPS antennas and communication modules adapted to the FAKRA interface are seamlessly connected to the receiving equipment of the SMA interface.

Premier Cable provides flexible customization services to meet different customer needs:

• Multiple connector combinations: FAKRA connectors can be used with multiple interfaces such as MCX, MMCX, N-type, SMA, TNC or U.FL.

• Support multiple frequency ranges: The frequency can reach 6GHz, which is suitable for high-frequency application scenarios.

• Multiple cable options: Ultra-fine coaxial cables (0.81mm, 1.13mm, 1.37mm), RG174, RG178, etc. can be selected to meet different space and performance requirements.

• High-quality gold plating process: The connector body can be gold-plated to ensure signal stability and longer service life.

Premier Cable is committed to providing high-quality, affordable solutions for diverse automotive and communication application needs.
