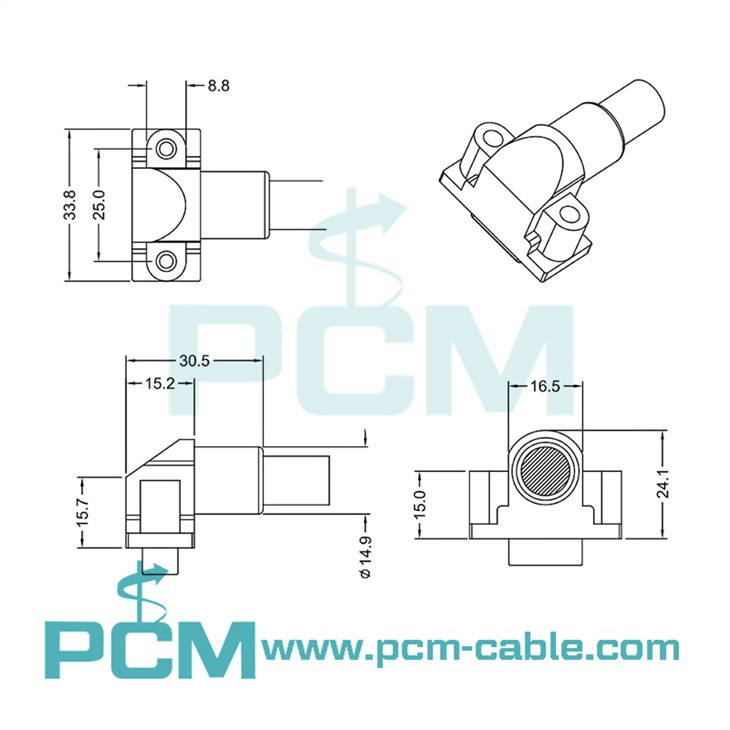

Drawing dimensions size of Low Profile UP Down Angle HD15 VGA Cable

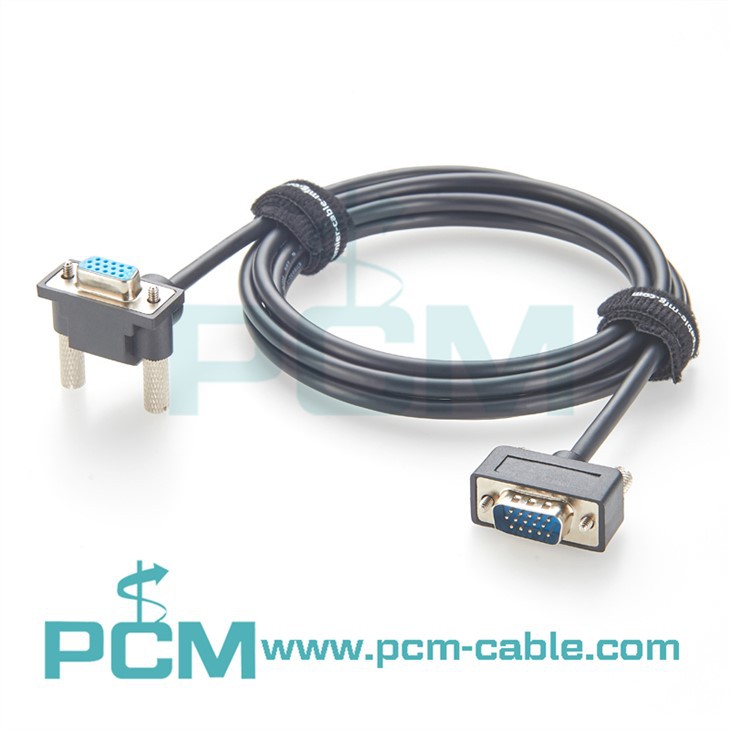

HD15 VGA SVGA 90° Up Down Angle Extension Cable

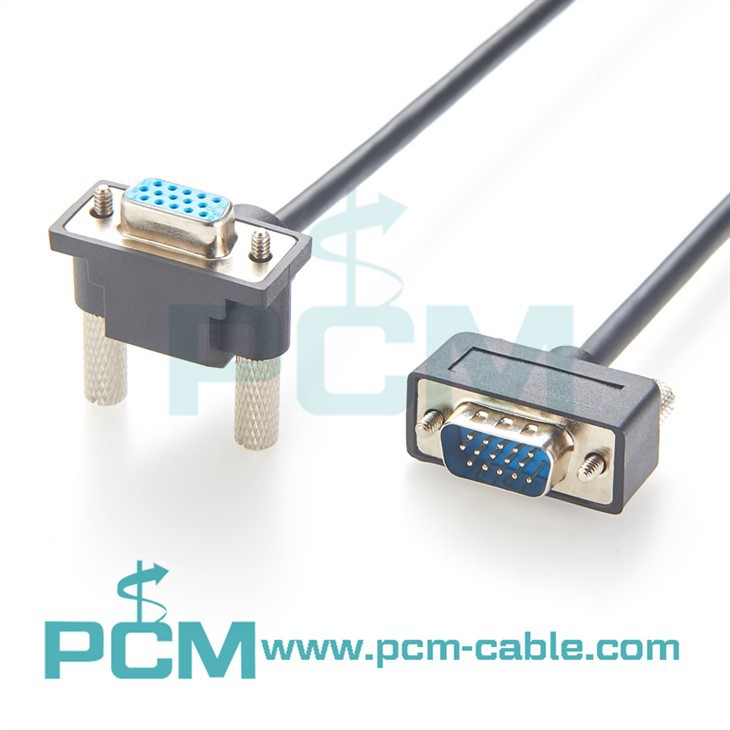

HD15 VGA Male to Female 90° Up Angle Down Angle Cable

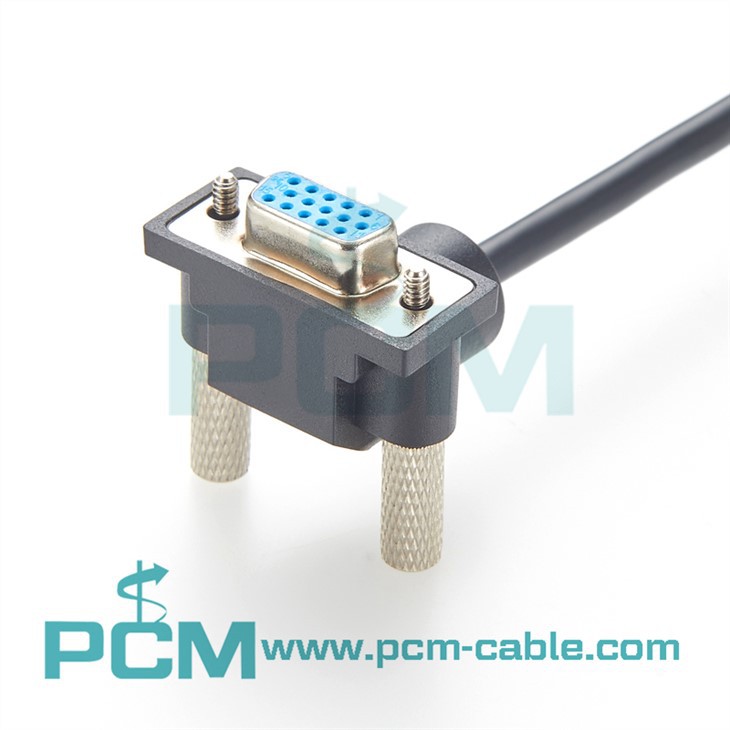

Ultra-Slim Up Down Angled HD15 VGA Female-to-Male Cable

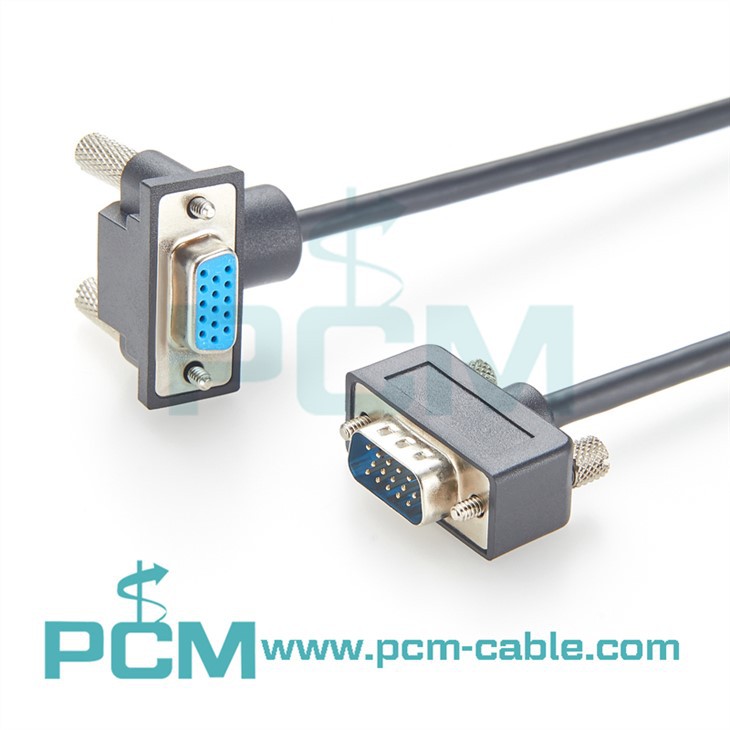

Low Profile 90° Down Angle Up Angle VGA HD15 Extension Cable

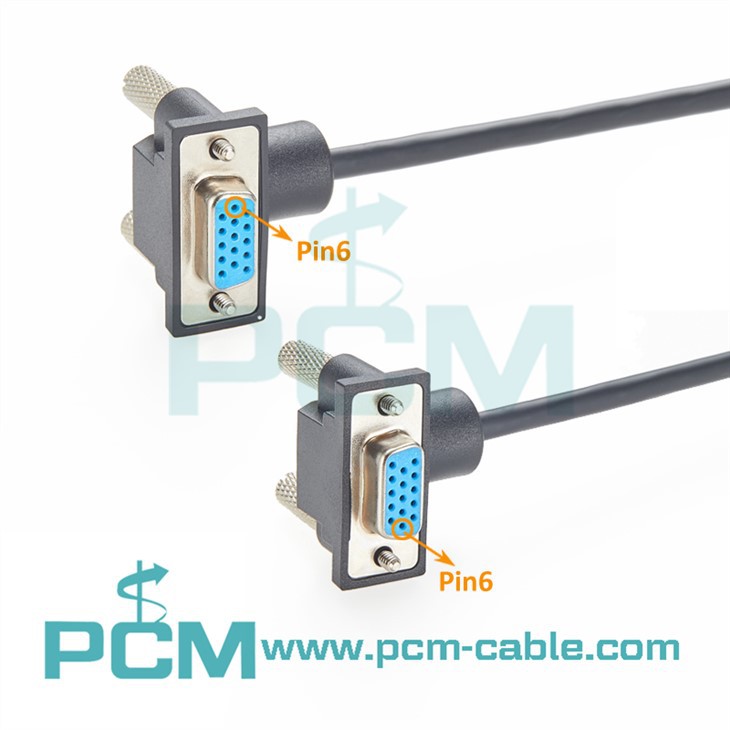

Up/Down Angled HD15 VGA Cable Female to Male Low-Profile
PCM Cable Co., Ltd. is one of the leading up/down angled hd15 vga cable female to male low-profile manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The PCM-S-0700 / PCM-S-0701 VGA Cable features an upward or downward 90° HD15 female connector paired with a straight HD15 male connector. Designed for compact spaces and tight panel installations, this low-profile cable provides a clean, reliable connection behind monitors, AV racks, or industrial equipment where straight plugs are impractical.
Manufactured by Premier Cable, it ensures stable Full HD signal transmission and robust construction for industrial and professional AV applications.
Specifications
| Product Name | Ultra-Slim Up/Down Angled HD15 VGA Female-to-Male Cable |
| Model | PCM-S-0700 (Up) / PCM-S-0701 (Down) |
| Connector A | HD15 VGA Female (Up / Down 90° Angled) |
| Connector B | HD15 VGA Male (Straight) |
| Profile | Ultra-low-profile design |
| Shielding | Foil + braid dual shielding |
| Contact Material | Gold-plated |
| Jacket | PVC |
| Strain Relief | Molded, reinforced |
| Length | 2m (Custom lengths available) |
| Resolution Support | Up to 1920×1080 Full HD |
| Compatibility | VGA / SVGA / XGA / UXGA / RGBHV devices |
| Manufacturing | Premier Cable OEM/ODM facto |
Premier Cable Angled VGA Cable Series Comparison Table
| Part Number | Angle Direction | Connector Type | Low-Profile | Description / Application |
|---|---|---|---|---|
|
PCM-S-0684 / PCM-S-0685 |
Left / Right | Male-to-Male | Yes | Left or right angled HD15 VGA plugs for tight spaces, wall-mounted displays, and AV cabinet installations. |
|
PCM-S-0698 / PCM-S-0699 |
Left / Right | Female-to-Male | Yes | Left or right angled HD15 VGA female connectors, ideal for extending existing VGA runs in compact wiring setups. |
|
PCM-S-0690 / PCM-S-0691 |
Up / Down | Male-to-Male | Yes | Up or down angled HD15 VGA plugs for top/bottom installation in tight wall or rack spaces. |
|
PCM-S-0700 / PCM-S-0701 |
Up / Down | Female-to-Male | Yes | Up or down angled HD15 VGA female connectors, perfect for extensions or compact installations. |
| PCM-S-0688 | Straight | Male-to-Male | Yes | Low-profile straight HD15 VGA male-to-male cable, space-saving, compatible with all standard VGA displays. |
| PCM-S-0689 | Straight | Male-to-Female | Yes | Low-profile straight HD15 VGA male-to-female cable, ideal for VGA extension or adapter use. |
About Premier Cable – Angled Cable Solutions
Premier Cable specializes in manufacturing high-quality angled cables for a wide range of connectors, including VGA, DB9, DB15, DB25, DB37, DB44, DVI, Mini DIN, and more. Our angled solutions feature 90° bends (up, down, left, right) and 45° bends, accommodating tight spaces and compact installations.
Whether you need male-to-male, female-to-male, or female-to-female connections, we can customize cable lengths, connector types, and bend directions to fit your exact requirements. Contact us with your specifications, and we will create a tailored angled cable solution to meet your industrial, professional AV, or specialized project needs.
