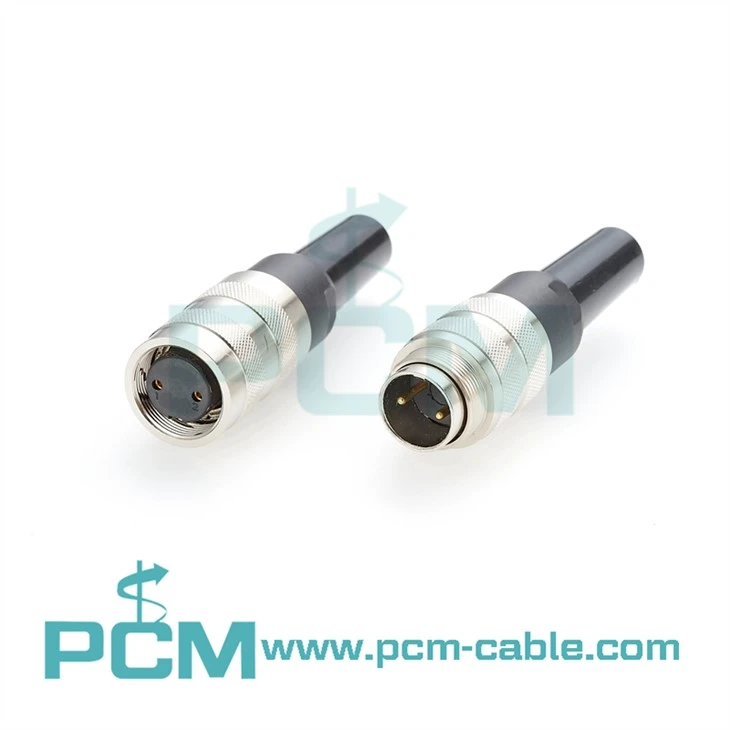

M16 Circular Connector Metal Shell Field Wireable Connector

PCM Cable Co., Ltd. is one of the leading m16 circular connector metal shell field wireable connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.



The M16 Circular Connector Metal Shell Field Wireable Connector is an important component for demanding industrial applications such as industrial automation, aerospace, marine, and telecommunication systems. With an IP67 protection rating, the M16 series offers 2, 3, 4, 5, 6, 7, 8, 12, 14, 16, 19, and 24 contact options.



The M16 connector is designed to deliver a secure and reliable connection for both signal and power transfer. Its right-angle metal shell makes it easy to connect even in tight spaces. The main purpose of the M16 Field Wireable Connector is to build custom jumper cables to quickly and easily connect equipment to I/O blocks or to combine multiple sensor signals into one port.




Specification

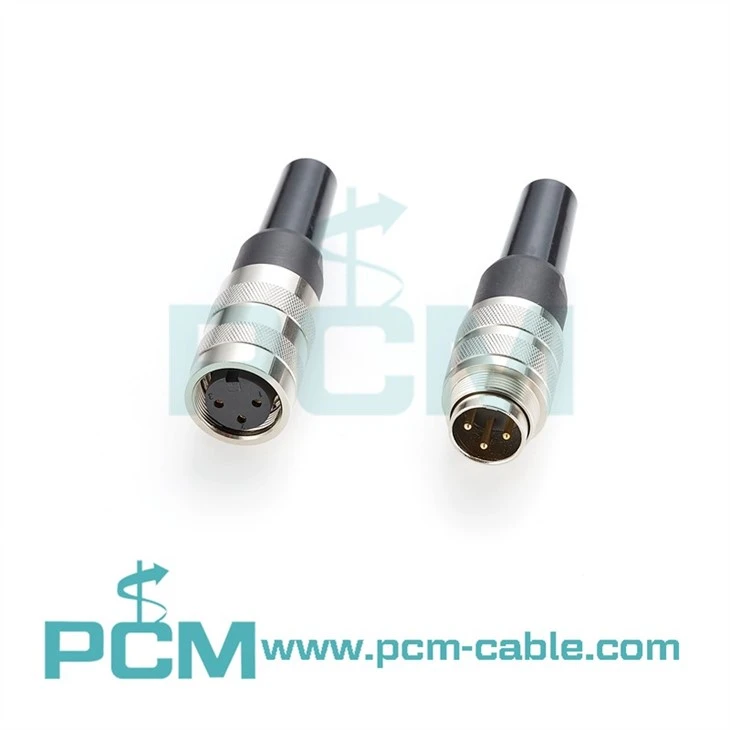

Product name	M16 Circular Connector manufacturer 2 Pin 3 Pin
Compatible	Amphenol C091 series, Binder 423 series, and 724 series
Cable outlet	6.0-8.0 mm
Degree of protection	IP67
Mechanical operation	> 500 Mating cycles
Rated voltage	250 V
Rated impulse voltage	1500 V
Rated current	7.0 A
EMC compliance	shieldable
Shield connection	Shielding ring



Application



Industrial
Automation & Process Control
Robotics
Medical
Sensing & Instrumentation
Mining
Oil and gas drilling anti-corrosion engineering
Electrical and electrical systems
