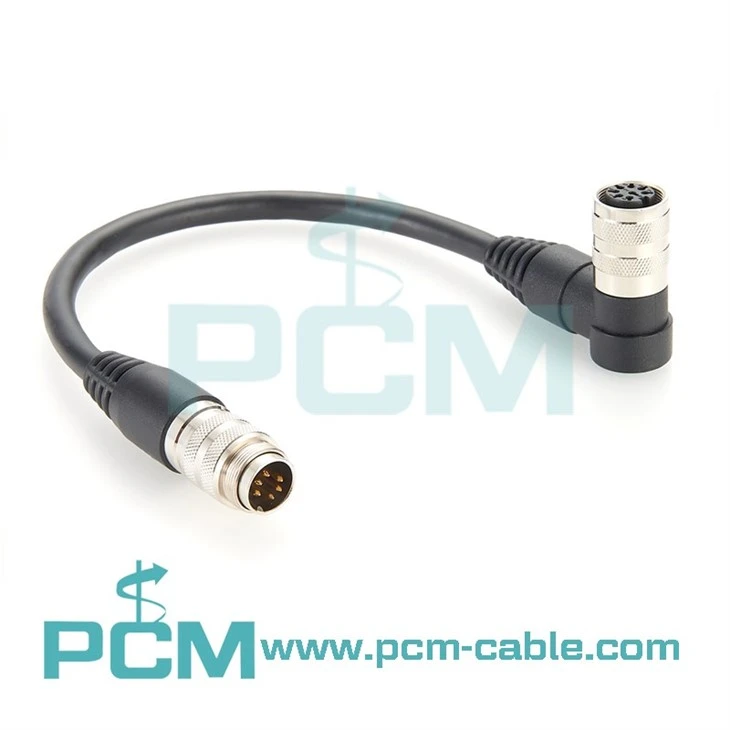

AISG RET Cable Assembly Male To Female Right Angle

PCM Cable Co., Ltd. is one of the leading aisg ret cable assembly male to female right angle manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.



About us



Premier Cable is a leading manufacturer of high-quality AISG RET control cable products for base station applications. Committed to using the highest quality materials in its cables, they are rigorously tested to ensure their reliability and durability.



Specification



Product name	AISG RET control Right Angle cable
Compatible Brand	Kathrein, Ericsson, Nokia (Alcatel-Lucent), Commscope, Radio Frequency Systems, Huawei, Comba.
Connector 1	8-pin DIN male, straight
Connector 2	8-pin DIN female, right angle
Function	Maintain optimal coverage and signal strength by remotely adjusting antenna tilt angle
Wire	2 x 0.25 sq. mm (24 AWG) twisted pair with 4 x 0.75 sq. mm (20 AWG) stranded
Date Conductor Type	24AWG twisted pair
Power Conductor Type	20AWG twisted pair
Cable Jacket Material	PVC
Standard	Antenna Interface Standards Group, IEC 60130-9
Protocol	AISG 1.1, AISG 2.0
Cable length	Customized per your request
Rated Current	5 A
Rated Voltage	300 V
Contact Resistance	≤ 5 mΩ
Dielectric Resistance	≥ 5000 MΩ
Endurance Cycles	500
Operating Temperature	-40 °C to +70 °C
Waterproof	IP67



FAQ



Q: What is the length of this AISG cable?
A: It depends on your specific needs, we can provide cables in various lengths to suit different installation scenarios.



Q: How much does this AISG RET control cable cost?
A: Price depends on several factors including length, quantity, etc. Please contact our sales team for a quote specific to your needs.
