Micro Fit 3.0 Dual Row 4 Pin Cable Assembly :
Features Applications And Selection Guide
Learn how the Micro Fit 3.0 dual row 4 pin cable assembly combines 3.0mm pitch connector design, 20AWG × 4C cable construction, PVC overmold protection and customizable harness solutions for PCB connection, industrial control, communication equipment and electronic devices.
Quick Product Introduction

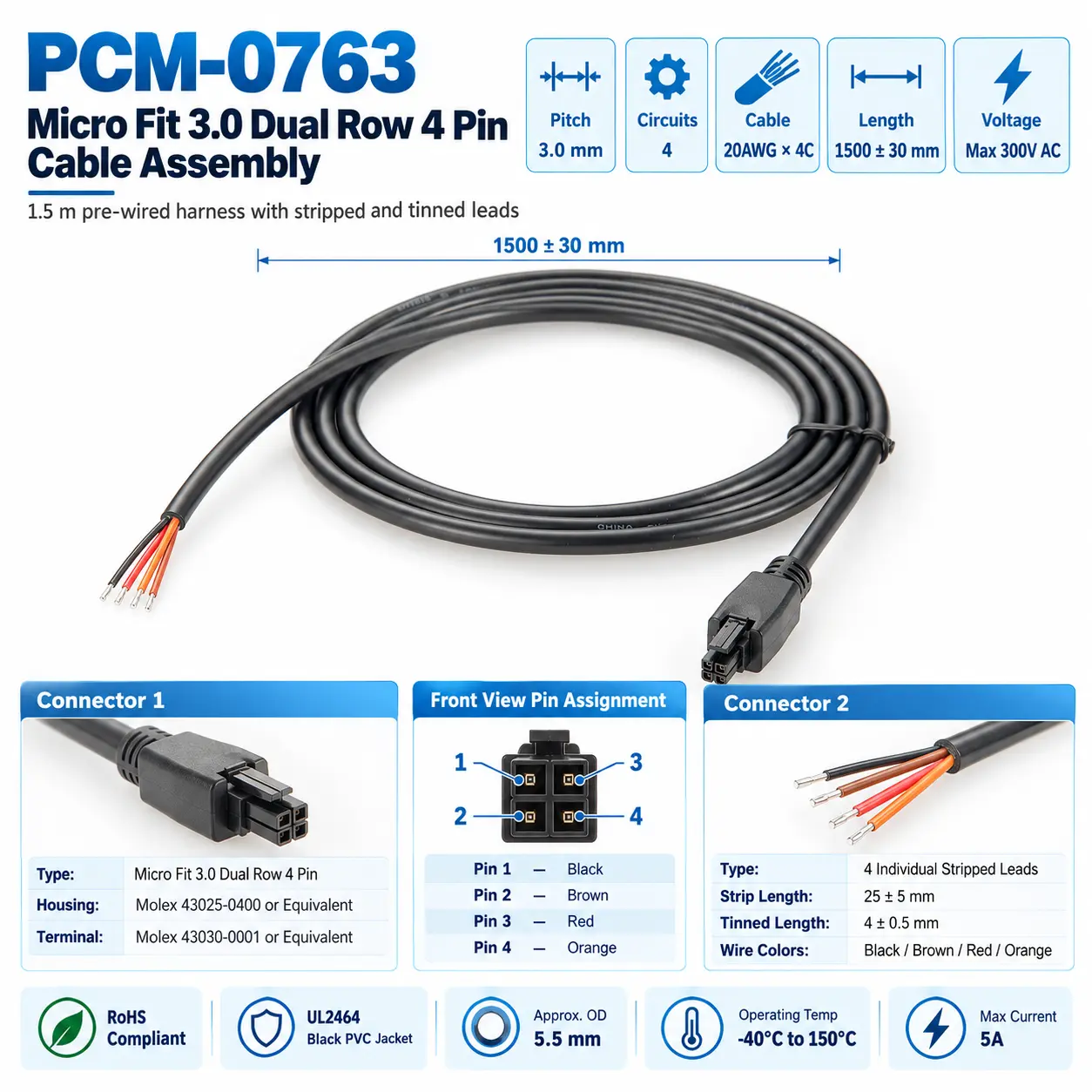

| Product Name | Micro Fit 3.0 Dual Row 4 Pin Connector Cable Assembly |
| Premier Cable P/N | PCM-0763 |
| Connector Type | Micro Fit 3.0 Dual Row Connector |
| Circuit Quantity | 4 Circuits |
| Pitch | 3.0mm Pitch |
| Cable Length | 1500±30mm |
| Cable Specification | 20AWG × 4C |
| Cable Jacket | Black PVC Jacket, OD 5.5mm |
| Compatible Series | Molex 245132 Series |
| Connector Housing |
|
PCM-0763 vs Standard Loose Wire Solution
| Comparison | PCM-0763 | Standard Loose Wire Solution |
|---|---|---|
| Connection | Pre-assembled harness | Manual wiring |
| Installation | Ready to install | Requires assembly |
| Space | Compact design | Larger space required |
| Reliability | Factory assembled | Higher wiring risk |
| Customization | Supports length and pinout customization | Limited options |
What Is a Micro Fit 3.0 Cable Assembly ?
A Micro Fit 3.0 cable assembly is a pre-assembled harness product based on the Micro Fit 3.0 connector system. It is mainly used for power, signal, Wire to Board and Wire to Wire connections inside electronic equipment.
Compared with loose wire solutions, it improves installation efficiency and connection reliability through standardized connectors and factory assembly The dual row 4 pin design provides four circuits in a compact space, making it suitable for miniaturized and high-density wiring applications.
Main Applications of Micro Fit 3.0 Cable Assembly
Micro Fit 3.0 cable assemblies are mainly used for power delivery and signal connections between internal electronic modules, supporting Wire to Board and Wire to Wire applications.
With a compact 3.0mm pitch, reliable connection performance and flexible customization options, they are widely used in industrial control equipment, communication devices, new energy systems, automotive electronics, consumer electronics and smart devices They help optimize space, simplify assembly and provide stable electrical connections.
What problem does PCM-0763 solve
Core Product Value
PCM-0763
The core advantages of PCM-0763 can be summarized as:
◆ Improving Production Efficiency
The Micro Fit 3.0 dual row 4 pin cable assembly uses a pre-assembled structure, with connectors, cables and protection components processed before delivery. It can be installed directly into equipment, reducing manual operations such as stripping, crimping and soldering while improving assembly efficiency.
◆ Improving Connection Reliability
The product uses standardized connectors and fixed wiring configurations. Through professional cable assembly manufacturing processes, it reduces wiring errors and inconsistent termination, ensuring stable performance for bulk orders and long-term supply.
◆ Optimizing Equipment Space Layout
With a compact 3.0mm pitch dual row 4 pin design, the cable assembly provides multiple electrical connections in limited space. It reduces wiring complexity and improves internal space utilization for compact electronic equipment.
◆ Supporting Flexible Custom Applications
According to different equipment requirements, customized cable assembly services are available, including cable length, pinout, terminal type and connection method adjustments, helping customers meet various project needs and equipment expansion requirements.
Products Display
Similar products
Compatibility Statement
Compatible Connector Systems
- This Micro Fit 3.0 dual row 4 pin cable assembly is designed based on the standard Micro Fit 3.0 connector system. It can be referenced with Molex Micro Fit 3.0 series, 43025-0400 connector, 43030-0001 terminal and 245132 series applications for equipment using the same interface structure and pin configuration.
Compatibility Verification
-
Mechanical mating does not always ensure full electrical compatibility. Before purchasing, verify connector model, gender, pin assignment, voltage and current requirements, cable length, installation space and operating environment to ensure proper application.
How to Select the Correct Micro Fit 3.0 Cable Assembly ?
Confirm Connector Model
Verify the exact IX connector model, coding and gender, as well as the RJ45 interface type. Connector shape alone does not guarantee compatibility.
Confirm Pin Assignment
A 4 pin connector does not ensure the same wiring definition. Confirm Pin 1 to Pin 4 functions, power, signal and ground connections.
Confirm Cable Specification
Select cable specifications according to current requirements and installation conditions. This product uses a 20AWG × 4C structure for power and signal applications.
Confirm Operating Environment
Check temperature, installation space and mechanical requirements. This product supports -40℃ to 150℃ operation for internal equipment connections.
Customization Capabilities
↕ Custom Cable Length
Cable length can be customized according to equipment space, installation distance and routing requirements.
□ Custom Pinout Configuration
Pin sequence, wire color and signal mapping can be customized to match equipment interface definitions.
◉ Custom Connector Selection
Different Micro Fit 3.0 connector models, orientations, locks and terminals can be evaluated.
⚙ Custom Cable Specification
AWG size, conductor count, jacket material and temperature rating can be customized.
⌘ Custom Wire End Processing
Supports stripping, tinning, terminal crimping and pin installation to reduce secondary processing.
◇ Bulk Supply
Supports individual packaging, bulk packing, labeling and long-term wholesale supply for OEM projects.
Conclusion：
PCM-0763 Micro Fit 3.0 dual row 4 pin cable assembly uses a 3.0mm pitch dual row connector and 20AWG × 4C cable. The P1 side features a MOLEX Micro Fit 3.0 4 pin connector, while the P2 side provides four independent wires with stripping and tinning treatment. With compact structure, reliable connection and easy installation, it is suitable for power and signal applications.
As a professional cable assembly manufacturer, we provide wholesale supply and customization services including cable length, pinout and wire end processing It is widely used in consumer electronics, communication equipment, industrial control, renewable energy and automation systems.
Product FAQ
Can This Cable Connect All Micro Fit Devices ?
No. Different devices may have differences in connector model, pin assignment, gender and electrical requirements. Mechanical mating does not always ensure full compatibility.
Can This Cable Be Used for Power Connection ?
Yes. This product uses a 20AWG × 4C cable with a maximum rated current of 5A for qualified internal power and signal connections.
Does This Product Support Wire to Board Applications ?
Yes. The Micro Fit 3.0 connector supports Wire to Board applications for PCB, terminal and internal module connections.
Does This Product Support Custom Cable Assembly ?
Yes. Customization options include cable length, pinout, connector, cable specification and wire end processing.
What Industries Use This Cable Assembly ?
It is widely used in industrial equipment, communication systems, renewable energy, automotive electronics and consumer electronics.
Can Bulk Orders Receive Stable Supply ?
Yes. Cable assembly manufacturers provide stable supply and long-term project support through standardized production and quality control.
