Hey there! As a terminal blocks supplier, I've been getting a lot of questions lately about signal integrity in data communication. So, I thought I'd take a deep dive into what signal integrity means for terminal blocks and why it's super important.
Let's start with the basics. Signal integrity refers to the ability of a signal to travel from one point to another without significant degradation. In the context of data communication, this means that the data being transmitted should arrive at its destination in the same form as it was sent. Any distortion, noise, or interference can lead to errors in the data, which can be a real headache, especially in critical applications.
Now, you might be wondering, what does this have to do with terminal blocks? Well, terminal blocks are used to connect wires and cables in electrical circuits, and they play a crucial role in ensuring signal integrity. When you're dealing with data communication, the quality of the connection provided by the terminal block can make or break the performance of your system.
One of the key factors that affect signal integrity in terminal blocks is the contact resistance. Contact resistance is the resistance that occurs at the point where the wire meets the terminal block. A high contact resistance can cause a voltage drop, which can lead to signal degradation. To ensure low contact resistance, it's important to choose terminal blocks that are made from high-quality materials and have a good design.
Another factor is the insulation resistance. Insulation resistance is the resistance of the insulation material between the conductors in the terminal block. A low insulation resistance can cause leakage currents, which can also lead to signal degradation. Terminal blocks with high insulation resistance are essential for maintaining signal integrity, especially in high-voltage or high-frequency applications.
The physical design of the terminal block also matters. For example, the spacing between the terminals can affect the capacitance and inductance of the circuit, which can in turn affect the signal integrity. Terminal blocks with proper spacing and a well-designed layout can help minimize these effects.
Let's talk about some real-world applications. In the automotive industry, for instance, terminal blocks are used in a variety of data communication systems, such as in-vehicle networking and sensor connections. In these applications, signal integrity is crucial for the proper functioning of the vehicle. A poor-quality terminal block can lead to communication errors, which can affect the performance and safety of the vehicle.
In the industrial automation sector, terminal blocks are used to connect sensors, actuators, and other devices in control systems. These systems rely on accurate data communication to operate efficiently. Any signal degradation can result in incorrect readings or malfunctioning of the equipment.
Now, I want to mention a few products that are related to the topic. If you're looking for audio connections, you might be interested in the 3.5mm TRS To TRRS Adapter. This adapter can help you ensure a proper connection and maintain signal integrity in audio data communication.
For marine applications, the NMEA 2000 Multiport T-connector is a great option. It provides a reliable connection for NMEA 2000 networks, which are used for data communication between various marine devices.

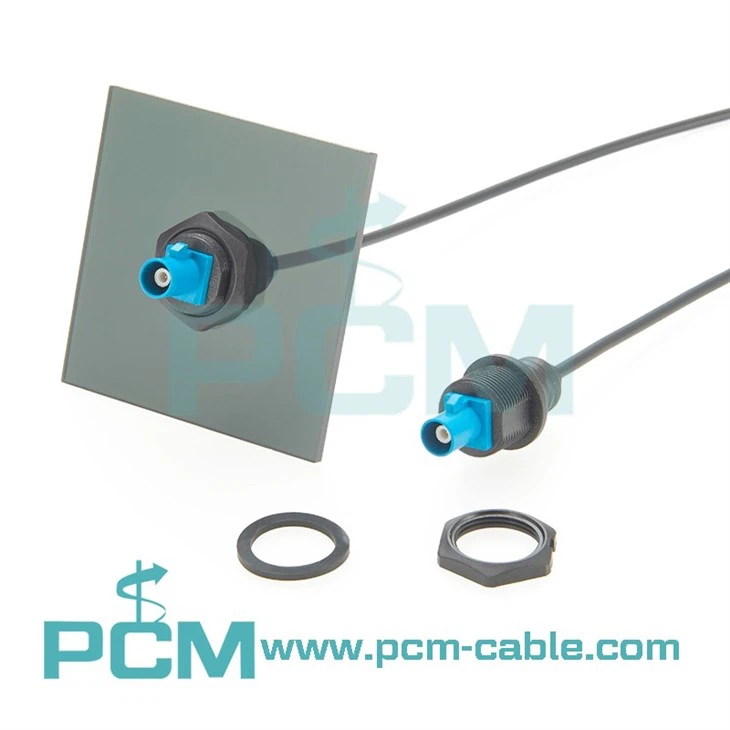

And if you're working on automotive ethernet applications, the Panel Mount Fakra Extension Cable Using RG174 Cable can help you extend your connections while maintaining signal integrity.
So, how can you ensure that you're getting the best terminal blocks for signal integrity? First, do your research. Look for suppliers who have a good reputation for quality and reliability. Check the specifications of the terminal blocks, such as the contact resistance, insulation resistance, and voltage ratings.
It's also a good idea to test the terminal blocks before using them in your system. You can use specialized equipment to measure the signal integrity and make sure that the terminal blocks meet your requirements.
As a terminal blocks supplier, I'm always here to help you find the right products for your needs. Whether you're working on a small DIY project or a large industrial application, I can provide you with high-quality terminal blocks that ensure excellent signal integrity.
If you're interested in learning more or want to discuss your specific requirements, don't hesitate to reach out. We can have a chat about the best solutions for your data communication needs. I'm confident that we can find the perfect terminal blocks for your project and help you achieve the best possible signal integrity.
In conclusion, signal integrity in terminal blocks is a critical aspect of data communication. By understanding the factors that affect signal integrity and choosing the right terminal blocks, you can ensure the reliable performance of your systems. So, if you're in the market for terminal blocks, give me a shout, and let's work together to get your project up and running smoothly.
