What Does This Article Cover?
XLR connectors are widely used in stage lighting, professional audio, broadcast, video production, test systems and industrial control because of their robust mechanical locking design.
During commissioning, prototyping, maintenance or field wiring, technicians often need to break XLR signals out to bare wires, test equipment or terminal connections.
Traditional soldered XLR wiring requires soldering tools and makes frequent rewiring less convenient.
Using Premier Cable PCM-0741 XLR 5-Pin Female to 3-Position Screw Terminal Adapter as an example, this guide explains XLR 5-pin interfaces, PH5.0 screw terminals, 1:1 breakout wiring, unused Pins 4 and 5, compatibility considerations, selection and customization.
Quick Product Introduction
PCM-0741 uses the following architecture:
XLR 5-Pin Female → Internal Direct Wiring → 3-Position PH5.0 Screw Terminal
The internal mapping is:
XLR Pin 1 → Terminal 1
XLR Pin 2 → Terminal 2
XLR Pin 3 → Terminal 3
XLR Pin 4 → NC
XLR Pin 5 → NC
NC means No Connection.
A mating XLR 5-pin male connector plugs into the adapter, while bare or stranded field wires are secured by the screw terminal.
The product is a passive XLR breakout adapter with no active conversion electronics.

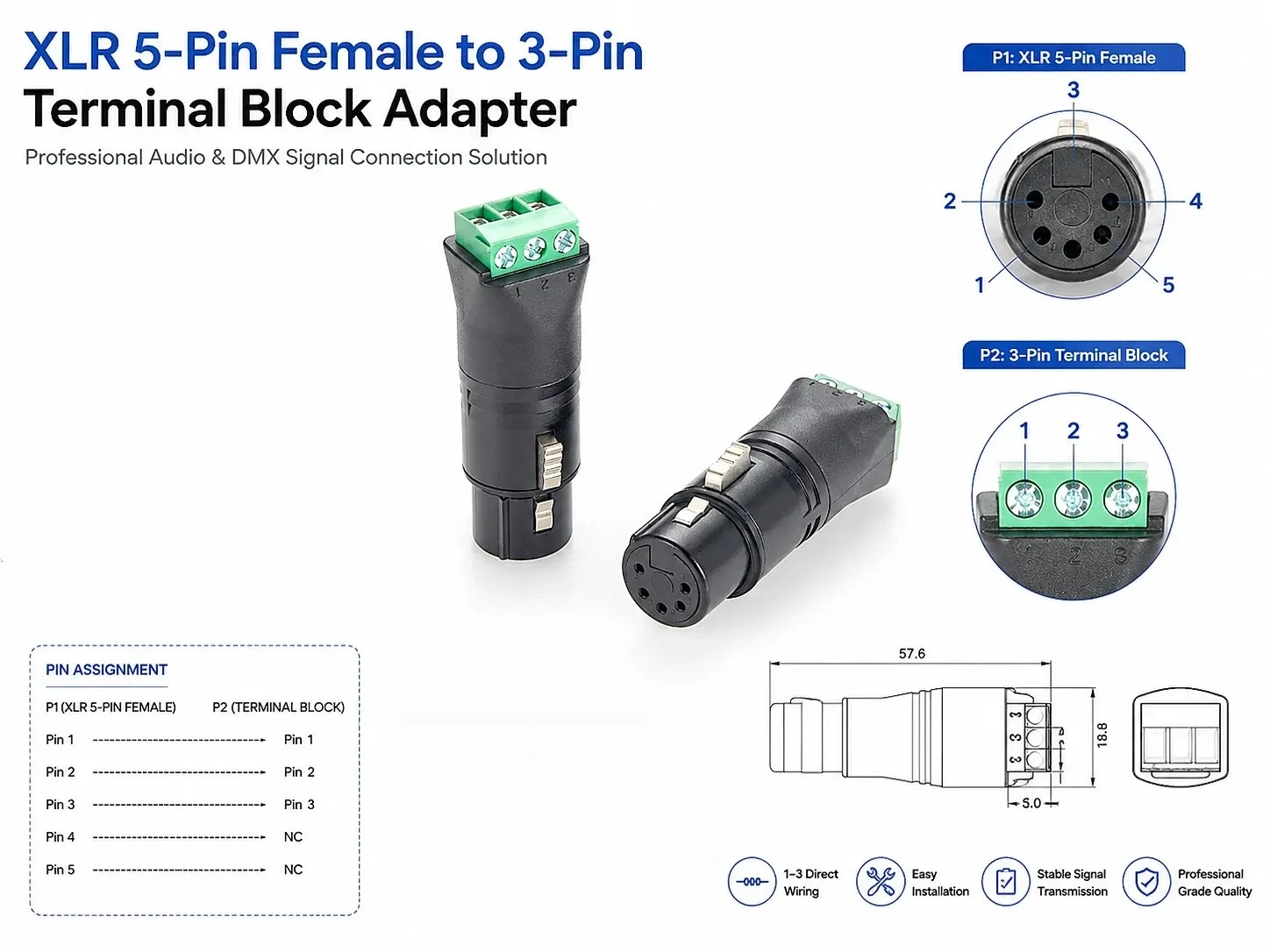

| Product Name | XLR 5-Pin Female to 3-Position Screw Terminal Adapter |
| Premier Cable P/N | PCM-0741 |
| Connector A | XLR 5-Pin Female |
| Connector B | 3-Position Screw Terminal |
| Terminal Pitch | PH 5.0 mm |
| Height | 57.6 mm |
| Width | 18.8 mm |
| Wiring | Screw Clamp, Solderless |
| Locking | Spring-Latch XLR Locking |
Compatibility Statement
PCM-0741 uses a standard XLR 5-pin female mechanical interface, but identical XLR geometry does not guarantee identical electrical assignments.
XLR 5-pin connectors may be used for DMX512, professional audio, dual-channel audio, AES digital audio, broadcast, industrial control or proprietary equipment.
PCM-0741 only routes Pins 1, 2 and 3, while Pins 4 and 5 remain unconnected.If the target equipment requires Pins 4 or 5, the adapter will not provide full functionality.
Always verify the equipment pin assignment, signal type, voltage/current and grounding before use.
Technical Compatibility Notice
- convert analog audio to digital audio;
- convert audio to DMX512;
- convert DMX into another control protocol;
- amplify or attenuate signals;
- provide impedance conversion;
- provide electrical isolation;
- include DMX termination;
- reroute Pins 4 or 5.
Its core function is simply:
XLR Pins 1/2/3 → Terminals 1/2/3
Physical mating does not automatically guarantee electrical compatibility.
Basic Product Knowledge
What Is an XLR 5-Pin Female to Screw Terminal Adapter ?
An XLR 5-pin female to screw terminal adapter is a passive connection device that breaks selected XLR contacts out into field-accessible screw terminals.
PCM-0741 is not a protocol converter.
Its signal path is:
XLR Male Device/Cable → PCM-0741 XLR Female → Internal Wiring → Screw Terminal → Field Wire
This makes selected XLR contacts directly accessible for field wiring and testing.
What Does It Mean That Pins 4 and 5 Are Unconnected ?
Although PCM-0741 uses a 5-pin XLR female connector, it has only three terminal positions.
Pins 4 and 5 are therefore electrically unconnected.
If the application requires only Pins 1, 2 and 3, the adapter can provide the required breakout.
If Pins 4 and 5 carry additional signals, power or control functions, a full 5-position breakout or a custom version should be used.
Pain Points and Product Value
Challenge 1:
Soldering Tools Are Required
Traditional XLR assembly may require connector disassembly, wire preparation, soldering and reassembly.
PCM-0741 simplifies temporary and field wiring by replacing solder joints with screw terminals.
Challenge 2:
Frequent Rewiring Is Inconvenient
Laboratory testing and troubleshooting often require repeated wiring changes.
Screw terminals allow signals to be reassigned without repeated soldering.
Challenge 3:
XLR Contacts Are Difficult to Access Directly
XLR contacts are relatively difficult to probe directly.
A breakout adapter exposes the selected signals at larger screw terminals for easier connection to test instruments and development systems
PCM-0741 XLR 5-Pin Female to 3-Position Screw Terminal
PCM-0741 uses an XLR 5-pin female connector with locking retention.
Only Pins 1, 2 and 3 are routed to the three PH5.0 screw terminals, while Pins 4 and 5 remain unconnected.
The product measures approximately 57.6 mm high × 18.8 mm wide and is designed for quick breakout of the first three XLR contacts into field wiring.
Applications:
Professional audio systems, DMX512 systems compatible with Pinout, broadcasting and television production, film and video production, laboratory testing, R&D platforms, equipment maintenance, and industrial control interface debugging.
Similar products
Products Display
Screw-Terminal Adapter vs. Soldered XLR
| Item | PCM-0741 Screw Terminal | Traditional Welded XLR | |
| On-site welding | Not required | Required | |
| Wiring Tools | Screwdriver | Soldering iron, solder, etc. | |
| Repeat rewiring | Fast | Slower | |
| Pin Access | Intuitive | The shell needs to beremoved. | |
| Temporarytesting | Very convenient | Average | |
| Fixing finished harnesses | Available | More common | |
| Tensile protection | Depends on wire fixation at site | You can optimize it with professional tabs | |
| Maintenance Efficiency | High | Lower |
How to Select an XLR to Screw Terminal Adapter ?
Verify XLR Gender
PCM-0741 uses an XLR 5-pin female connector and mates with an XLR 5-pin male.
A male adapter is required if the target equipment presents a female connector.
Determine How Many Pins Are Required
This is one of the most important selection factors.
PCM-0741 is appropriate when only Pins 1, 2 and 3 are required.
If Pins 4 or 5 are active, select a full breakout or customized adapter.
Verify the Pin Assignment
Do not rely on the XLR 5-pin connector format alone.
Always verify the electrical definition of every relevant pin from the equipment documentation.
Verify PH5.0 Terminal Spacing
PCM-0741 uses a 5.0 mm terminal pitch and measures approximately 57.6 × 18.8 mm.
Available wiring space and screwdriver access should be considered.
Customization Capabilities
XLR Gender and Pin Count
XLR 3-pin, 4-pin, 5-pin and other male/female configurations can be developed for specific equipment interfaces.
Custom Pin Mapping
Standard PCM-0741 uses 1→1, 2→2 and 3→3 with Pins 4 and 5 unconnected. Custom straight-through or remapped pin assignments are available.
Terminal Position Customization
Three-position, four-position, five-position and other terminal configurations can be developed.
Terminal Pitch and Type
Other terminal pitches, push-in terminals, pluggable terminal blocks and cable-entry orientations can be evaluated.
Housing and Color Customization
PVC colors, terminal colors, overmold geometry and markings can be customized for signal identification and branding.
OEM and ODM Development
Custom XLR breakout adapters can be developed from drawings, samples, pin assignments or equipment requirements, including prototype verification and electrical testing.
Frequently Asked Questions
01.Does It Require Soldering ?
No field soldering is required. Wires are inserted into the terminal positions and secured with a screwdriver.
02.Are All Five XLR Pins Connected ?
No. Only Pins 1, 2 and 3 are connected. Pins 4 and 5 remain unconnected.
03.Why Does a 5-Pin XLR Have Only Three Terminals ?
PCM-0741 is specifically designed to break out only the first three XLR contacts.
A 5-position version is required when all five contacts are needed.
04.Can It Be Used for Microphone or Balanced Audio Signals ?
It can be used as a breakout where the equipment pin assignment is compatible, but shielding, grounding and possible phantom power must be considered.
