RJ12 6P6C To 2 Pin Terminal RS485 Adapter:
Features Applications And Selection Guide
Learn how an RJ12 6P6C to 2 pin terminal RS485 adapter uses Pin 3 and Pin 4 breakout wiring, UL1061 26AWG wires, a 3.5 mm screw terminal and PVC molded protection to provide convenient field wiring for RS485, Modbus RTU, PLC control cabinets, industrial instruments and automation equipment.
PCM-0999 RJ12 6P6C to 2 pin terminal RS485 adapter breaks out Pin 3 and Pin 4 through UL1061 26AWG wires, a 3.5 mm screw terminal and PVC molded protection, providing a compact wiring solution for PLC cabinets, RS485 devices, industrial instruments and automation systems.
Quick Product Introduction
PCM-0999 Core Parameter Information.
| Product Name | RJ12 6P6C to 2 Pin Terminal RS485 Adapter |
| Premier Cable P/N |
|
| P1 Connector |
|
| P2 Connector |
|
| Main Application | RS485 Signal Adaptation / Wiring |
| Outer Diameter |
|
| Width | 11.5 mm |
| Wire Gauge | 26 AWG |
| Overmold |
|
PCM-HD-0999 vs Direct Bare Wire Connection
| Comparison Item | PCM-HD-0999 | Direct Bare Wire Connection |
|---|---|---|
| RJ12 Interface | RJ12 6P6C direct connection | Normally no RJ12 interface |
| Pin Breakout | Prewired Pin 3 and Pin 4 | Manual wire identification |
| Field Wiring | 2 pin screw terminal for easy wiring | Manual wiring required |
| Installation | No RJ12 recrimping, faster installation | More wiring steps |
| Miswiring Risk | Lower with predefined pinout | Higher |
| Maintenance | Easy to disconnect and replace | More complicated maintenance |
What Is an RJ12 6P6C to 2 Pin Terminal RS485 Adapter ?
From a structural perspective, this is a passive interconnection component between an RJ12 modular interface and a field screw terminal.
The equipment side connects through an RJ12 6P6C male plug, while the field side accepts bare conductors through a 2 pin screw terminal. Internal UL1061 wires and the fixed wiring path provide the electrical connection between the two interfaces.
The product therefore solves a difference in connection format, rather than a difference in communication protocol.
What does the product primarily do ?
When equipment uses an RJ12 interface while field wiring uses individual wires or terminal blocks, this adapter breaks out selected RJ12 pins directly to a 2 pin screw terminal. It is suitable for RS485, Modbus RTU, PLC cabinets, remote I/O, instruments and sensors.
Compared with cutting cables or recrimping RJ12 connectors, the predefined pinout reduces wiring steps and miswiring risk while improving installation, testing and maintenance efficiency.
Common Questions About RJ12 Terminals ?
Core Product Value
PCM-0999
The core advantages of PCM-0999 can be summarized as:
◆ Improve Wiring and Maintenance Efficiency
The integrated RJ12 interface and 2 pin screw terminal reduce the need for field recrimping or custom cable preparation Engineers can complete wiring, testing, disconnection and replacement more efficiently, making it suitable for PLC cabinets, RS485 commissioning and industrial maintenance.
◆ Fixed Pinout Reduces Wiring Errors
The standard version prewires RJ12 Pin 3 and Pin 4 to the corresponding terminals. Once the equipment pinout is confirmed, internal wires do not need to be identified again, reducing manual wiring steps and improving installation consistency.
◆ Compact Design Supports Industrial Installation
At approximately 35 mm long and 11.5 mm wide, the compact integrated design helps reduce installation space inside control cabinets. The orange 45P PVC molded housing also provides mechanical protection for the internal wiring area against normal bending and pulling.
◆ Supports Standardized OEM Integration
For equipment manufacturers using a fixed RJ12 pinout, this adapter can serve as a standardized accessory to unify field wiring, installation, spare-part management and maintenance. Pinout, wire and terminal specifications can also be customized for OEM applications.
Products Display
Similar products
Compatibility Statement
Interface and Pinout Compatibility
- This product uses an RJ12 6P6C male plug and breaks out Pin 3 and Pin 4 to a 2 pin terminal. Mechanical fit does not guarantee electrical compatibility. Verify the interface, Pin 3 and Pin 4 definitions, and RS485 A/B assignment according to the equipment manual and pinout.
Function and Installation Requirements
- This is a passive wiring breakout adapter and does not provide protocol or level conversion between RS232, USB, TTL and RS485. Before installation, confirm the 3.5 mm terminal, wire requirements, available space and environment.
How to Select the Correct RJ12 to 2 Pin Terminal Adapter ?
Confirm Interface and Pinout
Confirm the RJ12 6P6C interface, connector gender, mechanical structure, and Pin 3 and Pin 4 definitions. Select another pinout or custom version if required.
Confirm Signal and Conversion Requirements
Confirm whether Pin 3 and Pin 4 carry RS485 A/B, control, or other signals. This adapter is for wiring breakout only and does not provide protocol or level conversion.
Confirm Terminal and Installation Conditions
The standard version uses a 2 pin 3.5 mm pitch terminal. Verify wire size, installation space, RJ12 access, screw operation, and wire bending clearance.
Provide Equipment Information
For volume or OEM projects, provide the equipment model, interface photos, pinout, signal definitions, terminal requirements, and operating environment to reduce selection errors.
Customization Capabilities
↕ Custom Pinout
RJ12 pins, terminal order and wiring can be customized according to the equipment pin assignment.
□ Custom Terminal
Terminal structure, orientation, pitch and wiring method can be customized for installation requirements.
◉ Custom Wire
AWG size, wire color and cable specifications can be customized for different circuit functions.
⚙ Custom Housing
Molded housing colors and appearance can be customized for branding and equipment identification.
⌘Custom Dimensions
Lead length, structural orientation and installation configuration can be customized for equipment space.
◇ Custom Packaging
Bulk packaging, labels, barcodes, part numbers and OEM packaging can be customized.
Conclusion：
The PCM-0999 RJ12 6P6C to 2 Pin Terminal RS485 Adapter converts selected RJ12 circuits into screw terminals for easier industrial field wiring and does not perform protocol conversion. It uses UL1061 26AWG wires to break out Pin 3 and Pin 4 to a 3.5 mm 2-pin terminal, It is suitable for RS485, Modbus RTU, PLCs, industrial instruments and test equipment.
Confirm the 6P6C structure, pinout, wiring definition and installation environment before use Custom pinouts, wires, terminals, labels and OEM packaging are available.
Product FAQ
Is It Compatible with All RJ12 Devices ?
Not necessarily. The standard version uses RJ12 Pin 3 and Pin 4. Confirm the 6P6C interface, pinout and circuit definitions before purchasing.
Can It Be Used with Modbus RTU ?
Yes, if the RJ12 interface and RS485 pinout match. Confirm the Pin 3 and Pin 4 definitions in the equipment documentation before use.
What Is the Standard Pinout ?

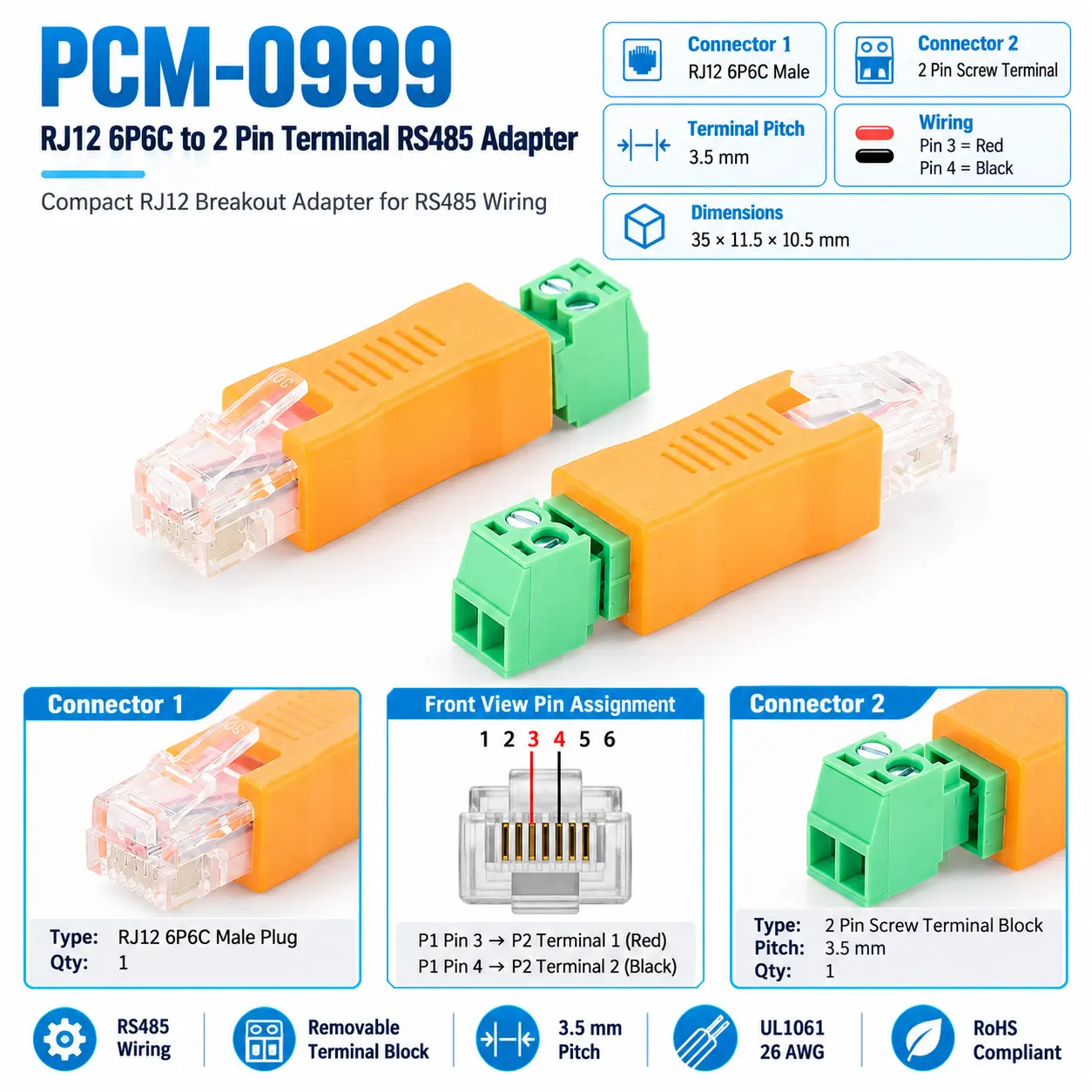

Pin 3 connects to P2 Pin 1 through a red 26AWG wire, while Pin 4 connects to P2 Pin 2 through a black wire.
What Are the Terminal and Dimensions ?
The standard product uses a 3.5 mm pitch 2-pin screw terminal and measures about 35 × 11.5 × 10.5 mm. Installation clearance is required.
Why Use a Screw Terminal ?
The screw terminal connects field wires directly without RJ12 crimping, making it suitable for testing, maintenance and control cabinet wiring.
Are Customization and OEM Available ?
Custom pinouts, wire gauges, colors, terminals, labels and packaging are available, with wholesale, OEM and volume production support.
